Group

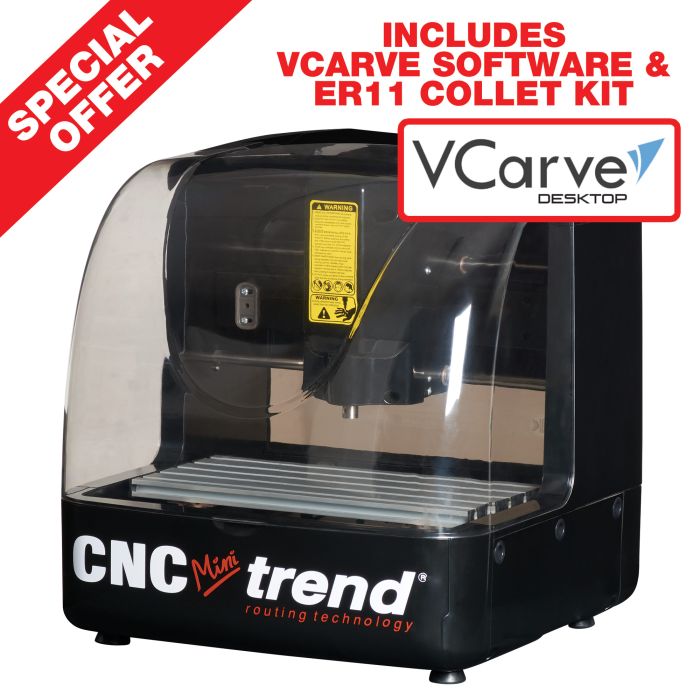

DEAL/CNCM/1E - CNC Mini Engraving Machine Extra 240V including VCarve software and ER11 collet kit- UK and ROI sale only

DEAL/CNCM/1E
A$4,852.68

CNC Mini bundle deal

  • Latest desktop miniature engraving machine for 2D and 3D engravings, photo images and routing projects complete with easy to learn software.
  • CNC Carving Machine can create or import G-Codes for CNC carving programs. This function allows you to use additional software programs; such as VCarve, ArtCAM and BMP programmes.
  • Small lightweight desktop model with micro switch fully guarded safety dust cover for safe operation making it ideal for education.
  • Table size 320mm x 150mm, with total engraving area (XYZ travel) 220mm x 160mm x 63mm.
  • LED light.
  • Brushless 150 watt DC motor for low noise and durability with 4mm collet capacity.
  • Use with hardwoods, soft woods, exotic woods, and many synthetic materials such as acrylic and ABS plastic, foam, modelling wax, styrene, epoxy board. Ideal for use with white, brown and clear acrylic to create highly detailed carvings.
  • Works with any PC computer running Windows XP up to Windows 10.
  • Endless possibilities in what you can create: use images from digital photos, CAD drawings, computer generated art programs, scanned images and more.
  • Includes a simple, straight forward common platform software package.
  • Supplied with two solid carbide engraving cutters Ref. S66/2X4MMSTC & S66/4X4MMSTC.
  • For UK sale only.
Voltage
240 volt
Table size X-axis
320 mm
Table size Y-axis
150 mm
Table load weight max.
2 kg
Max.movement X-axis
220 mm
Max.movement Y-axis
160 mm
Max.movement Z-axis
63 mm
Max. material thickness
63 mm
Max. engraving speed
2500 mm/min
Min. engraving speed
40 mm/min
Resolution
0.05 mm (0.002 inch)
Power supply input
220-240V
Power supply output
DC 24V 4.5A
Spindle motor
150 watt DC Brushless
Power consumption
2.0A
Collet capacity max.
4 mm (0.16 inch)
Operating noise level
39.6 dB(A) standby
No loading operation noise
<66 dB(A)
Spindle speed
0-20000 rpm
Interface
USB 2.0
System requirements
PC running Windows XP up to Windows 10
Machine size depth
390 mm
Machine size width
400 mm
Machine size height
425 mm
Weight
14.7 kg
End of life
See below for Environmental Policy link

no spare products

Videos

CNC Mini Video - Demonstration

Demonstration of the New CNC Mini in action.

CNC Mini Software - Overview

An overview of the CNC Mini & Software

CNC Mini Video - 3D Demonstration

Demonstration of the New CNC Mini cutting a 3D Relief.
