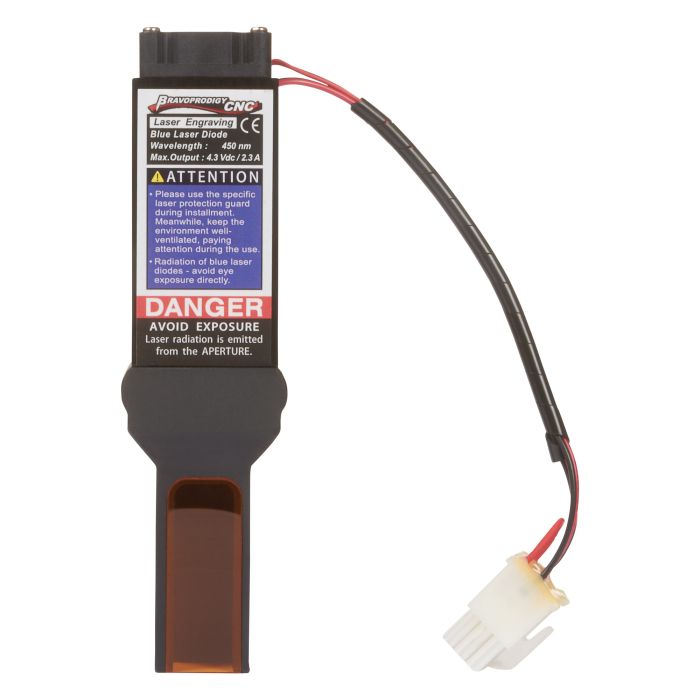

CNCM/LM - CLCM/LM Laser Module

CNCM/LM
A$1,100.30

Increase the capabilities of your CNC Mini routing machine with the addition of a laser engraver

  • The CNC laser module can be easily fitted to any CNC/MINI/1E or CNC /MINI/2E machine by removing the router unit (4 screws), having removed outer safety cover (4 Screws and 2 screws on the 1E). Approximate change over time 5 minutes. Check with the Trend CNC Team if unsure if the module will fit your machine. Plug and Play
  • The laser can be used to engrave on the following materials, Wood based material, Cork, Bamboo, Leather, Cardboard, Foam. Paint on metal surfaces can also be engraved but not the metal itself
  • The following items can be cut with the laser, Paper, Cardboard, Foam.
  • Supplied with updated software for the machine
  • The laser module is compatible with V Carve CAD/CAM software or the supplied Bravo EDIT software
  • The power of the laser is controlled through the CAD/CAM software using the depth of cut to control intensity of the laser
  • Supplied with full instructions for fitting and use
  • CNC/MINI/1E is fitted with an exhaust fan which is controlled within the software, this only works when the laser module is fitted
  • This product is CE certified
Power
3 Watt/3000 m/W (variable)

Laser beam colour: (visible range) Blue.
