Key Applications

B

U

C

Adjustable Quick-Release Aperture Blocks are used to set the hinge position and length, and feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate adjustments.

Adjustable Edge Guides are used to set the hinge leaf width and can be positioned using indexed locations (20, 25, and 30mm) or anywhere within the open channel, for non-standard widths up to 35mm.

Lightweight Anodised Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.

Fire Door Compatibility allows the 2nd hinge to be positioned 20” from the top of the door.

Bradawl Attachment allows the jig to be quickly secured to doors and frames (included).

Aluminium End Plate allows the jig to fit both door and frame with minimal adjustment.

25mm Rail Depth allows jig to be used against fixed door stops up to 25mm thick.

2-Part Body for compact transportation.

Robust Carry Bag.

• Adjustable Quick-Release Aperture Blocks are used to set the hinge position and length, and feature Trend’s tool-free, patented* thumb-turn locking mechanism for fast, accurate adjustments.

• Adjustable Edge Guides are used to set the hinge leaf width and can be positioned using indexed locations (20, 25, and 30mm) or anywhere within the open channel, for non-standard widths up to 35mm.

• Lightweight Anodised Aluminium Rails for optimum strength, durability, accuracy and a smooth router running surface.

• Fire Door Compatibility allows the 2nd hinge to be positioned 20” from the top of the door.

• Bradawl Attachment allows the jig to be quickly secured to doors and frames (included).

• Aluminium End Plate allows the jig to fit both door and frame with minimal adjustment.

• 25mm Rail Depth allows jig to be used against fixed door stops up to 25mm thick.

• 2-Part Body for compact transportation.

• Robust Carry Bag.

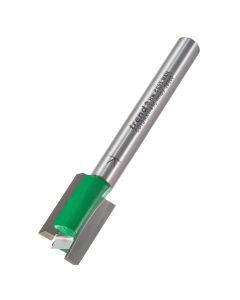

• Requires: Plunge router (¼”/8mm collet), cutter (¼”/8mm shank x 12mm cut diameter x 70mm overall length) and corner chisel.

• Includes: Guide bush (16mm diameter).

H/JIG/C
2-Part Skeleton Hinge Jig

A precision routing jig to recess square butt hinges in timber doors and frames. Delivers clean recesses and pinpoint accuracy with minimal set-up and without the need for marking out in the conventional way. Used with a light duty ¼” router, the jig can be used for new, renovation and Fire Door installations.
