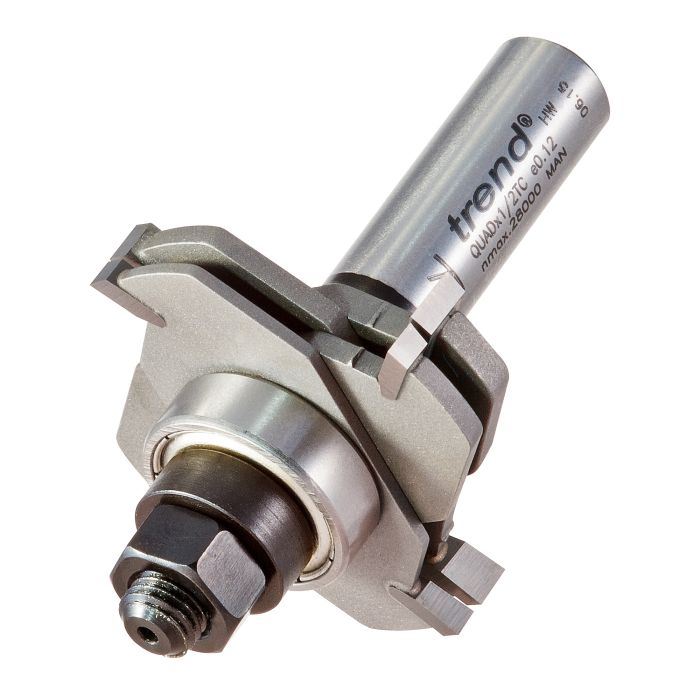

QUADX1/2TC - Quad groover set
QUADX1/2TC
This versatile 1/2 inch shank groover set offers grooving widths of 3.2mm, 4.0mm, 4.8mm and 6.3mm. It is infiniteley variable from 6.6mm to 18mm in 0.1mm increments. A jointing facility using the bearing is also possible.
- Set comprises of four 2 wing groovers with 7.94mm (5/16 inch) bore and an arbor which may be used singly or together to produce a wide range of groove widths. One ball bearing comes as standard.
- This set can also be used to tongue and groove 9mm to 22mm board.
- D
- 47.6 mm
- C2
- 3.2 to 18 mm
- B
- 22 mm
- E
- 12.8 mm
- OL
- 76.2 mm
- Shank Diameter
- 1/2 inch
- SP-QUAD/18
- 3.2 mm
- SP-QUAD/532
- 4 mm
- SP-QUAD/316
- 4.8 mm
- SP-QUAD/14
- 6.3 mm
For stationary machines at max. recommended speed 18,000 RPM
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
33/30X1/2 | 002 | Replacement arbor for an 8mm bore tool. |
1 | A$26.24 |
|
BB22 | 003 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
1 | A$29.74 |
|
SP-QUAD/14 | 001D | Replacement blade for QUADX1/2TC. |
1 | A$76.52 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
