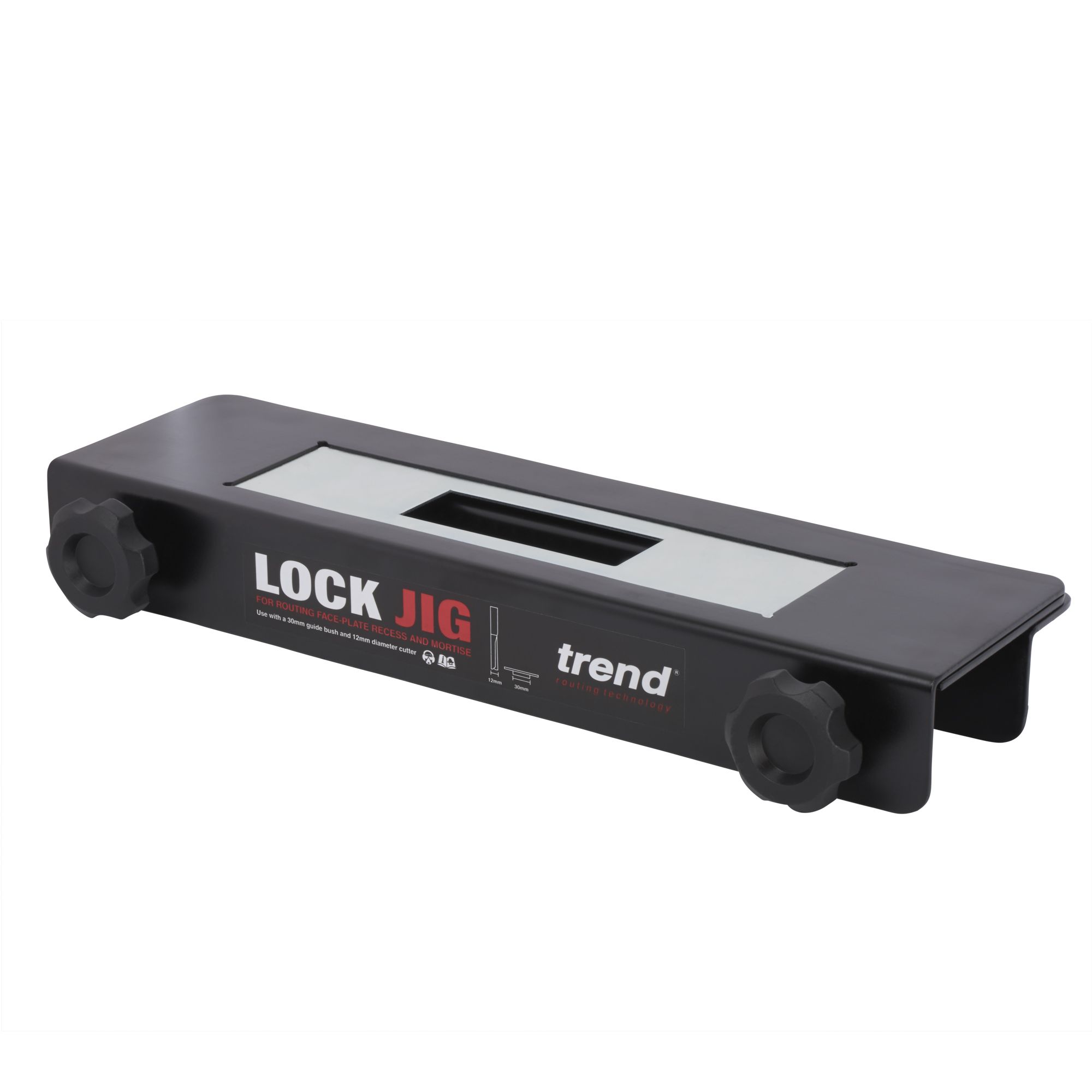

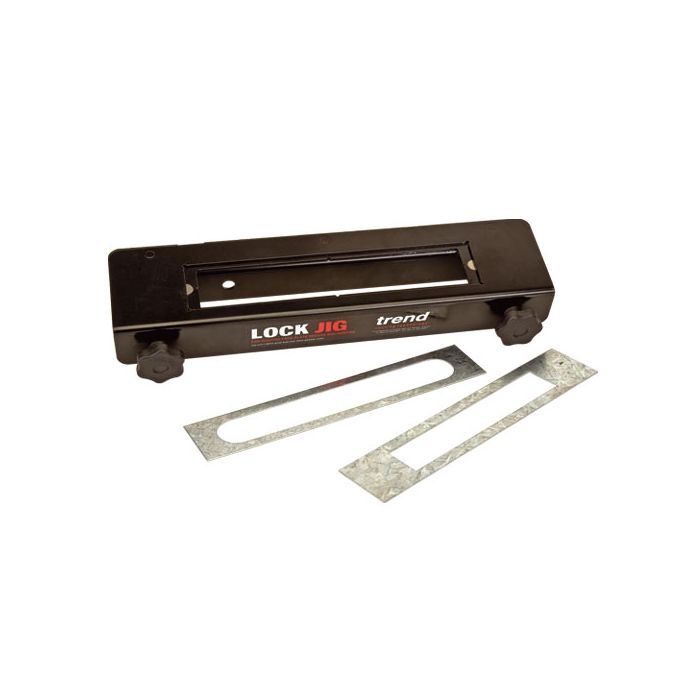

LOCK/JIG/A - Lock Jig Large

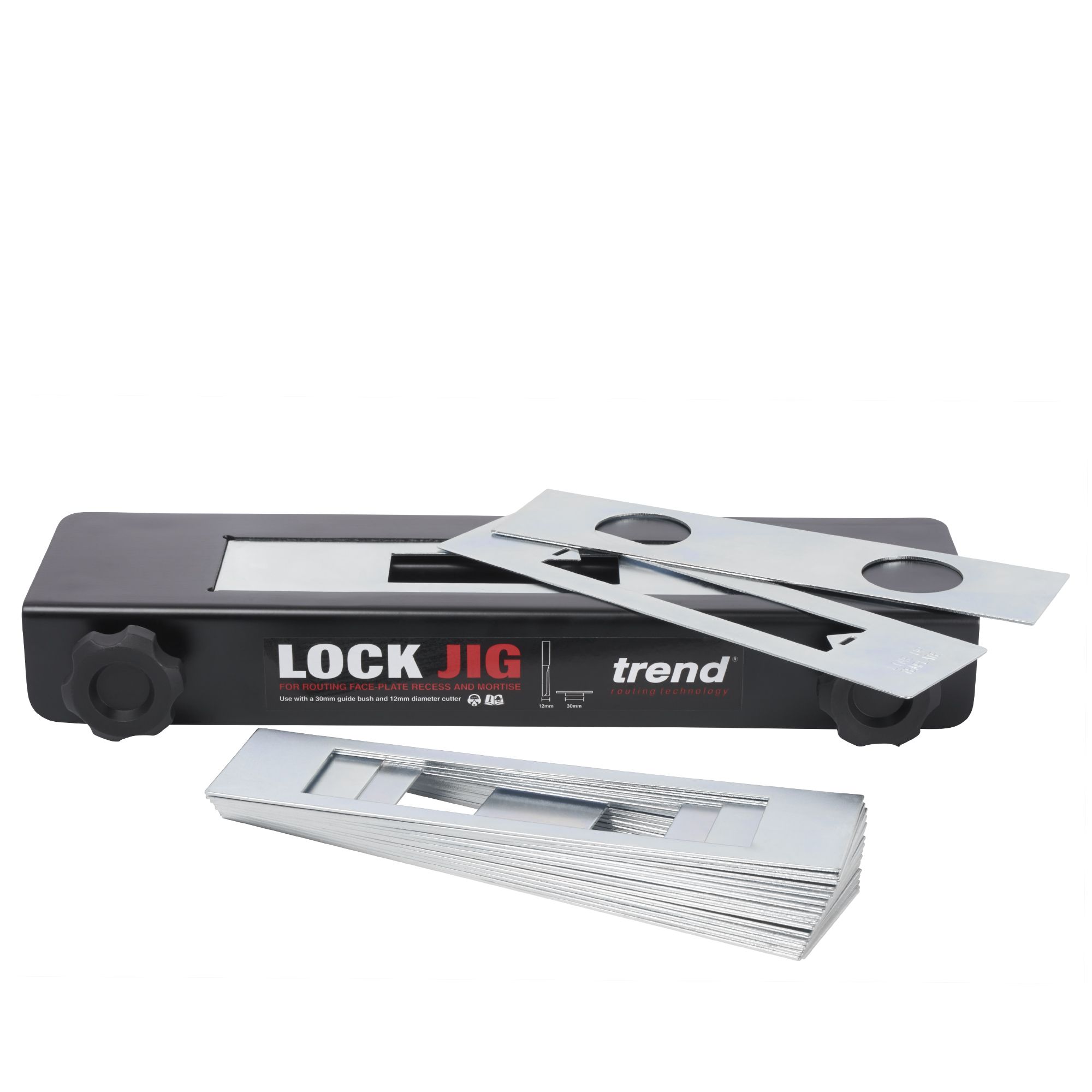

Contractor jig with interchangeable templates for use with a plunge router to cut the mortise & face-plate for larger locks quickly & accurately.
- Suitable for DDA (Disabilty Discrimination Act) lock size.
- 20mm x 235mm radius end face plate, 24mm x 235mm radius end face plate and 17mm x 170mm mortise.
- Adaptor plate included to allow smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
- Suitable for doors 34mm to 58mm thick.
- An auger bit and drill is required to complete deep mortises.

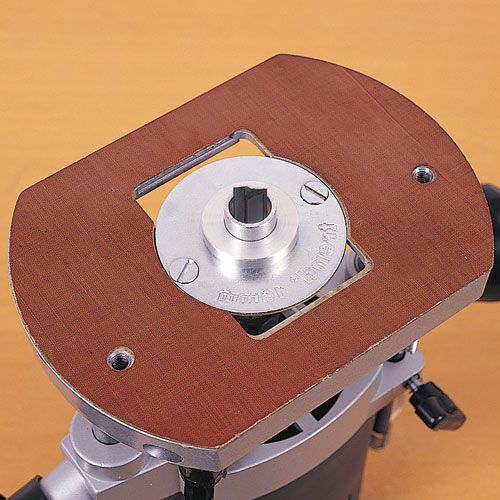

- The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter. A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

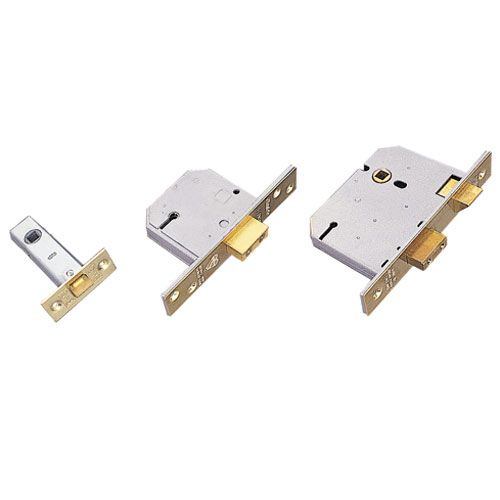

- Suits DIN style locks.
- Door thickness min.
- 34 mm
- Door thickness max.
- 58 mm
Lock faceplate sizes
- Metric (D x OL)
- Template
- 20 x 235mm (RE**)
- 1
- 24 x 235mm (RE**)
- 2
Lock mortise size
- 17 x 170mm*
- A
*Mortise is actually 180mm to give 5mm clearance each end.
**Rounded ends
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
GB/COLL/1630 | 016 | Aluminium collar to fit guide bushes.
|
1 | A$18.28 |
|
MAG/PACK/1 | 015 | These magnets are nickel plated and incredibly strong making them ideal for a variety of workshop applications with endless possibilities.
|
1 | A$25.50 |
|
WP-LOCK/04 | 004 | Replacement mini knob for the LOCK/JIG. |
2 | A$11.64 |
|
WP-LOCK/05 | 005 | Replacement adjustable lever M8 for the LOCK/JIG. |
3 | A$15.28 |
|
WP-LOCK/06A | 006 | Replacement knob for the LOCK/JIG. |
2 | A$17.52 |
|
WP-LOCK/08A | 008 | Replacement plastic cap for the LOCK/JIG. |
2 | A$4.02 |
Out of Stock
|
WP-LOCK/A/14 | 018 | The adaptor plate for the LOCK/JIG/A. |
1 | A$41.24 |
|

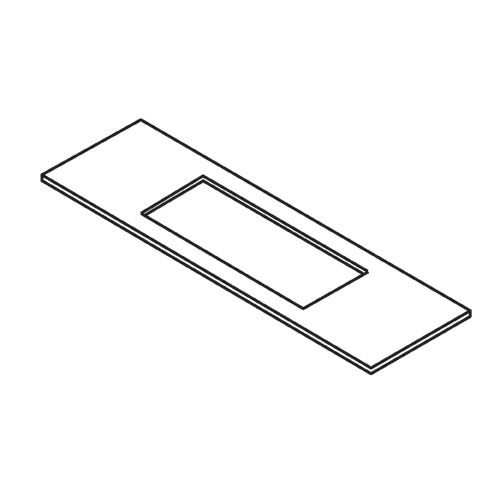

WP-LOCK/A/T/1 | 018 | Replacement template for the LOCK/JIG/A. |
1 | A$28.44 |
Videos
Lock Jig Video

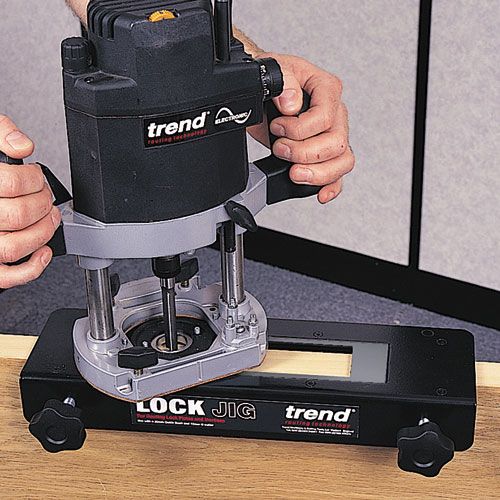

Using the Lockjig to rout a door lock.
Hinge Jig Video
Demonstrating how easyand quick it is to hang a door using a hinge jig
Tibby Singh Trend Lock Jig Demo Video
Tibby Singh Demonstrates the Trend Lock Jig - D&M Show 2015.
Spares Diagrams
Product Questions
The standard radius produced with our lock jig is 6mm this is the radius from a 12mm diameter cutter. A 10mm radius can be obtained with a 20mm cutter C030A in conjunction with a GB240 24mm guide bush.
The fingers on the Lock Jig allow the jig to be lifted off the door edge by up to 6mm. This prevents the guide bush from catching the door.
The GB30A should not be used on thin internal doors as the guide bush can contact the jig body. We advise GB30 with 6mm spigot length is used.
Yes and no because although the mortise could be recessed the faceplate would require some work with a chisel to finish it off. Also special sizes of plate may be required.
No you can use the collar that comes included with the Lock Jig. This fits over the top of the GB160, which will then increase the diameter to 30mm.
Yes, there is an insert that is placed in the jig which reduces the aperture length.
Yes we have a wide selection of other sizes available. Please call our technical department with your lock dimensions.
Yes, available from stock, the part number is WP-LOCK/T/14.
