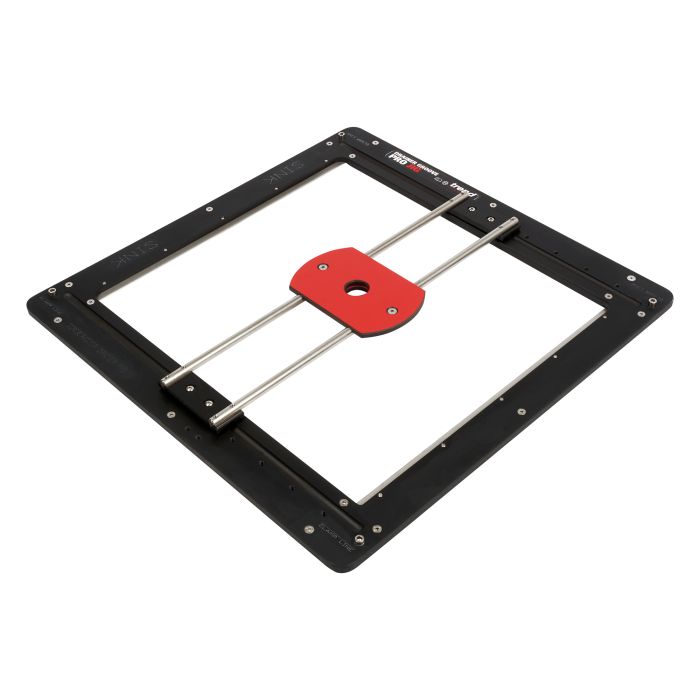

DG/PRO - Drainer Groove Pro Jig

Frame for routing drainer grooves in solid timber and solid surface worktops.

• Made from 12mm hardwearing CNC machined Compact Grade High Pressure Laminate.
• X and Y-axis ski and carriage allows forward and back, and side to side movement.
• Provides a 0.5 degree fall.
• Router carriage has hole to accept a 30mm guide bush.
• Carriage can be locked to allow parallel groove routing for standard drainer grooves.
• Router carriage can also be used for tapered surfacing applications with a 19mm diameter straight cutter.
• Outer frame has index holes at 50mm centres to restrict length of slots and includes two index pins.
• Five inner templates accessories available to give various groove effects such as straight slot, straight fan, curved fan, lightning fan and hot rod.
• Router carriage is not used when inner templates are fitted.
• Requires suitable plunge router with 30mm guide bush and cutters.
• Patent App. No. GB1718517.4
• A Unibase may be required for certain makes and models of router.
