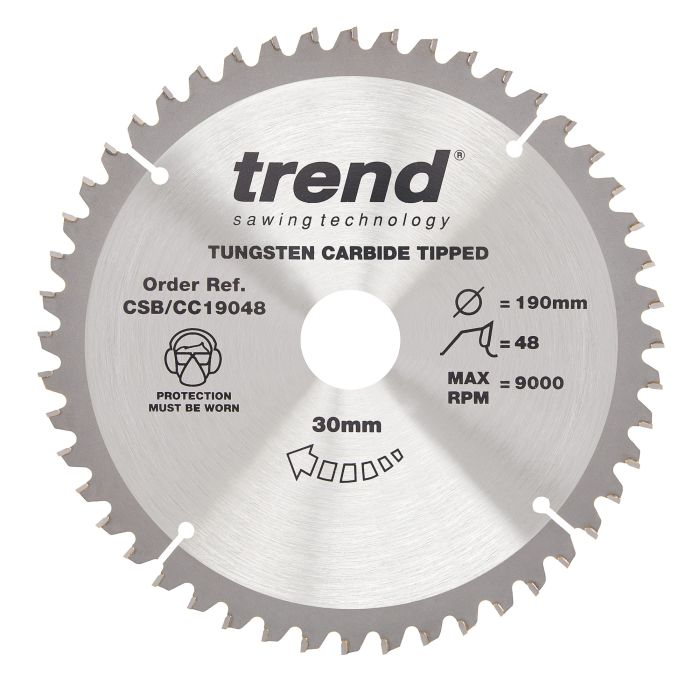

CSB/CC19048 - Trend Wood Mitre Saw Blade 190mm x 30mm x 48T
A range of tungsten carbide tipped blades for cross-cutting wood and wood-based materials using Mitre and Radial Arm saws. Ideal for timber skirting boards, architraves, floorboards, window boards, cladding and decking.
- Alternate top bevel (ATB) tooth form with negative hook prevents self-feeding for a safe, controlled cutting action, while delivering a precise, clean cut.
- Microgranular tungsten carbide tips (TCT) for optimum edge retention.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.
- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed bore ensures precise spindle fit.
Crosscut TCT Sawblades
A range of Tungsten Carbide Tipped blades for crosscutting wood and wood-based materials using mitre and radial arm saws.
Overview
Click the tabs below to see each product's details
Features
Microgranular Tungsten Carbide (TCT) Tips are silver-brazed and precision-ground for optimum edge retention and cut quality.
Alternate Top Bevel (ATB) Profile with -5° Hook or Alternate Top Bevel +Raker (ATBR) Profile with +7° Hook.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.
Etched Blade Information to EN847 safety standard.
Detail
Click the tabs below to see each product's details
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with -5° hook prevents self-feeding for a safe, controlled cutting action, while delivering a precise, clean cut.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel (ATB) Profile with -5° Hook prevents self-feeding for a safe, controlled cutting action, while delivering a precise, clean cut.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Microgranular Tungsten Carbide (TCT) Tips silver-brazed and precision-ground for optimum edge retention and cut quality.
- Alternate Top Bevel +Raker (ATBR) Profile with +7° Hook delivers a precise, clean cut in a variety of timbers.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Thin Kerf reduces the amount of material cut to minimise dust and maximise cordless runtime.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D
- 7 1/2 inches
- D
- 190 mm
- Bore
- 30 mm
- Kerf
- 2.6 mm
- Plate thick
- 1.7 mm
- No. of Teeth
- 48
- Tooth form
- ATB
- Hook
- Neg 5 degrees
- Quick Selector No.
- C15
- Colour Code
- White Red
- Type
- Mitre Saw Crosscutting
- Cut Finish
- Medium
- Max rpm
- 9000
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
CSB/BW15A | Craft Pro 30mm to 20mm reducing bush - for saw blades
|
A$6.72 |
