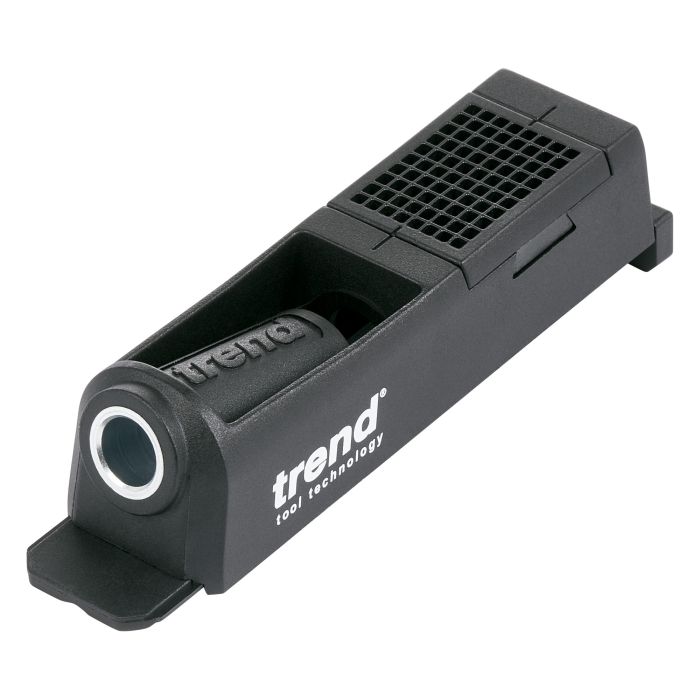

PH/JIG/BS - Single Pocket Hole Jig

PH/JIG/BS
A$62.56

Strong glass-reinforced nylon body in a compact design. For drilling 9.5mm wide pocket hole joints in wood, such as panel fixing, corners and mitre joints. Features hardened steel drill guide and clamping point. Unique drill depth setting system for fast set-up on materials from 12.7 to 38mm. Perfect for narrow repairs in confined spaces.

  • Material Thickness Gauge allows fast checking of material thickness without the use of a tape measure.
  • Pre-set Depth Gauge adjusts the pocket position to suit the timber thickness.
  • Drill Bit Setting Gauge is used to set the correct drilling position for materials between 12.7mm and 38mm thick.
  • Full-Length Hardened Drill Guide Bushes for long life and accurate drilling.
  • Woodchip Relief Hole helps protect against clogging inside the drilling guides.
  • Flip-Over End Stop allows the jig to hook over for an external joint or butt up to an edge for an internal joint.
  • Clamping Pad provides even pressure to the jig for consistent, accurate pockets.
  • Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.

Single Pocket Hole Jig

Ideal for fast and accurate joining of solid timber and sheet materials giving strong instant joints

Multi-function design for single hole pockets

Makes strong secure joints in seconds

Works with all timber thicknesses from 12mm to 38mm

For new work, repair work and different thickness materials

Features

Works with timber thicknesses from 12.7mm to 38mm.

Built in depth gauge for fast drill depth setting.

The jig hooks over the end of the material for accurate positioning on new work.

Flat top profile for easy clamping to the workpiece.

Easy to locate in situ for repair work.

Fast, strong and quick construction for impressive projects.



Details



  • Works with timber thicknesses from 12.7mm to 38mm.
  • Perfect for single or multiple fixing positions in wide or narrow stock components.
  • Portable and adaptable for multiple jointing styles and applications.
  • Reversible depth gauges, ideal for new and repair work.
  • Build cabinets, furniture, and small joinery projects with ease.
  • Tool free, fast and easy set up.
  • Built in drill depth gauge.
  • Supplied with drill, driver bit and a selection of screws.
  • Ideal for jointing in hard and softwoods and sheet materials.

Related Products


Material thickness min.
12.7 mm
Material thickness max.
38 mm
Screw sizes
Coarse No.7x25 mm, No.7/8 x 30 mm, No. 8x37 mm, No.8 x 50 mm, No. 8 x 63 mm

no spare products

Videos

Mini Single Pocket Hole Jig Video

Single Pocket Hole Jig Overview

Product Questions

Yes, the jig can be used to create pockets for mitred frame corner joints. It may be necessary to tilt the pocket hole piece so that the hole is not perpendicular to the mitred edge, so as to prevent the pocket from breaking out of the top edge.
