TEMP/PD/R/G - Template Panel Door Set Rad 400mm

TEMP/PD/R/G
A$42.20

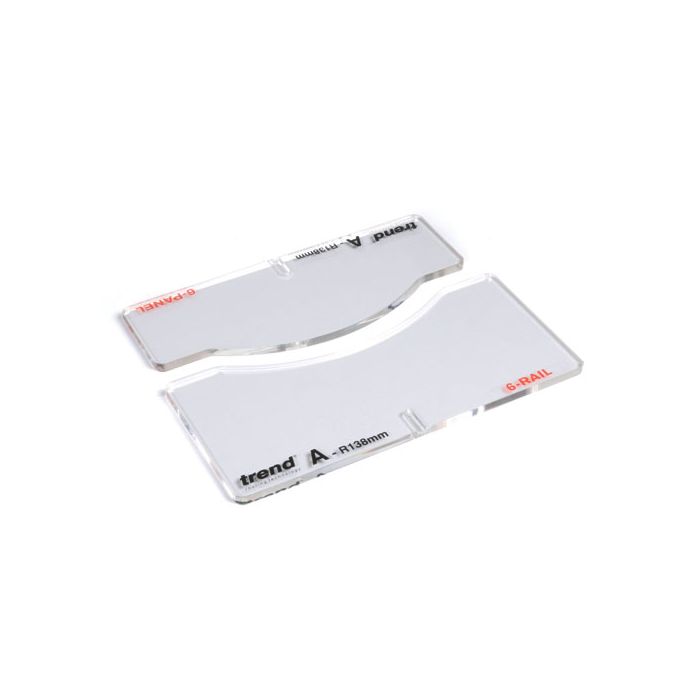

Clear plastic 6mm template for use with a router and template profiling cutter to create a curved rail and panelled door.

  • Two part templates for both the concave and convex cut, for the frame and panel.
  • A Unibase may be required for certain makes and models of router.
D
526 mm
D2
440 mm
C
102 mm
R
400 mm
Door width possible
620 to 660 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
UNIBASE - Trend UNIBASE - Router base adaptor. Allows other makes and models of router to use the Trend Guide Bushes for increased diversity. UNIBASE

The Unibase enables routers with non-standard guide bush fittings to accept the range of Trend guide bushes. It will fit directly to most routers.

  • Line-up pin used with a 16mm plastic bush to ensure concentricity of the cutter to the guide bush when fitting the sub-base.
  • Suits collet sizes 1/4 inch, 8mm, 12mm and 1/2 inch.
  • Instructions for fitting
  • The line-up pin fit into the collet and is plunged through the router base. The line-up bush is fitted into the Unibase and secured. This is then placed over the line-up pin and rotated in order to line up the fixing holes. The Unibase screws are tightened and then the line-up bush can be replaced with any choice of Trend guide bushes. These range from 10mm up to 30mm (GB10 - GB32). For larger diameter cutters a 40mm guide bush (GB40) is available.
  • Ideal for hinge jig and lock jig
A$50.58
