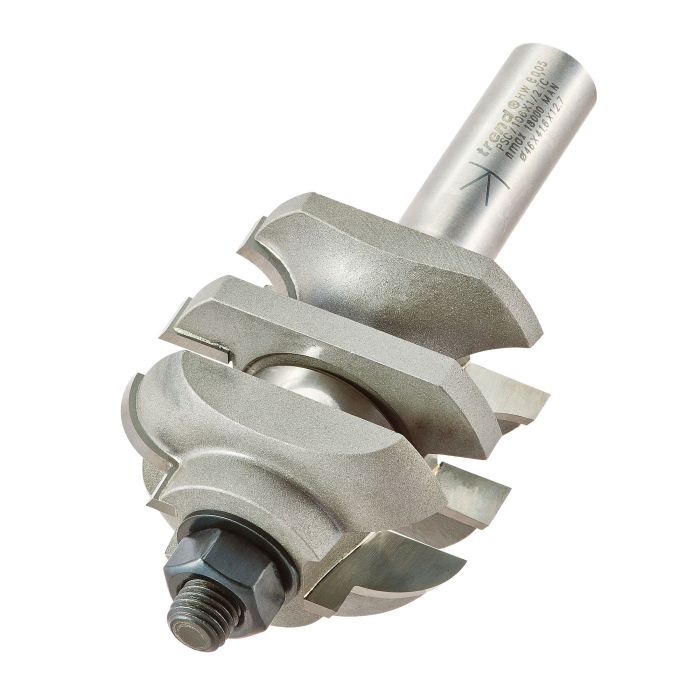

PSC/106X1/2TC - Easyset profile scribe set
PSC/106X1/2TC
These tools produce the same type of joint & use the same components as the combination PSC sets.
- Both parts of the joint are cut by only changing the cutter height.
- No reassembly of parts is required, to convert the tool from scribing mode to profiling mode and vise-versa.
- Router table use only.
- D
- 46 mm
- D2
- 42 mm
- C
- 15 mm
- C2
- 6.3 mm
- B
- 22 mm
- R
- 10 mm
- OL
- 80 mm
- Shank Diameter
- 1/2 inch
- Timber thickness min.
- 21 mm
- Timber thickness max.
- 26.5 mm
For stationary machines at max. recommended speed 18,000 RPM
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
33/32X1/2 | Replacement arbor for the PSC/106X1/2TC |
A$43.54 |
