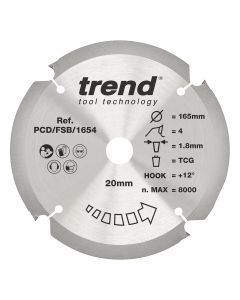

PCD/FSB/1654 - Trend PCD Fibre Cement Circular Saw Blade 165mm x 20mm x 4T
A range of polycrystalline diamond blades for cutting a wide variety of ultra-hard and abrasive materials. For use in circular, plunge, table and mitre saws, Trend PCD Fibre Cement blades are exceptionally durable and retain their cutting edge for longer than TCT alternatives. Ideal for AQUAPANEL®, HardieBacker®, gypsum, composite decking & cladding, laminate flooring, fibre & glass reinforced polymer and compact laminate worktops.

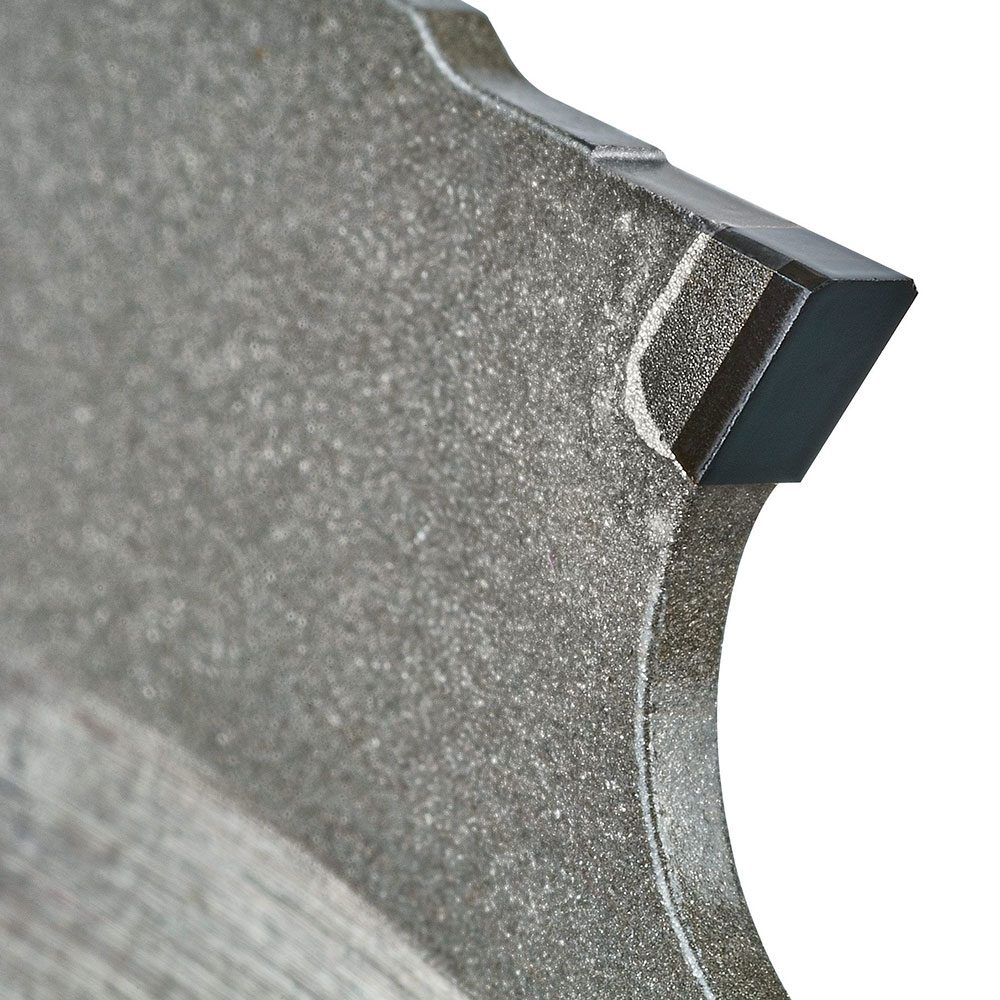

- Precision EDM-ground polycrystalline diamond (PCD) tips for optimum edge retention and cut quality in abrasive sheet materials.
- Triple chip ground (TCG) tooth form with +12° hook for a clean, controlled, efficient cutting action through tough materials.
- Precision ground alloy steel plate to maintain flatness.
- Body hardened and tempered to minimise deflection under load.

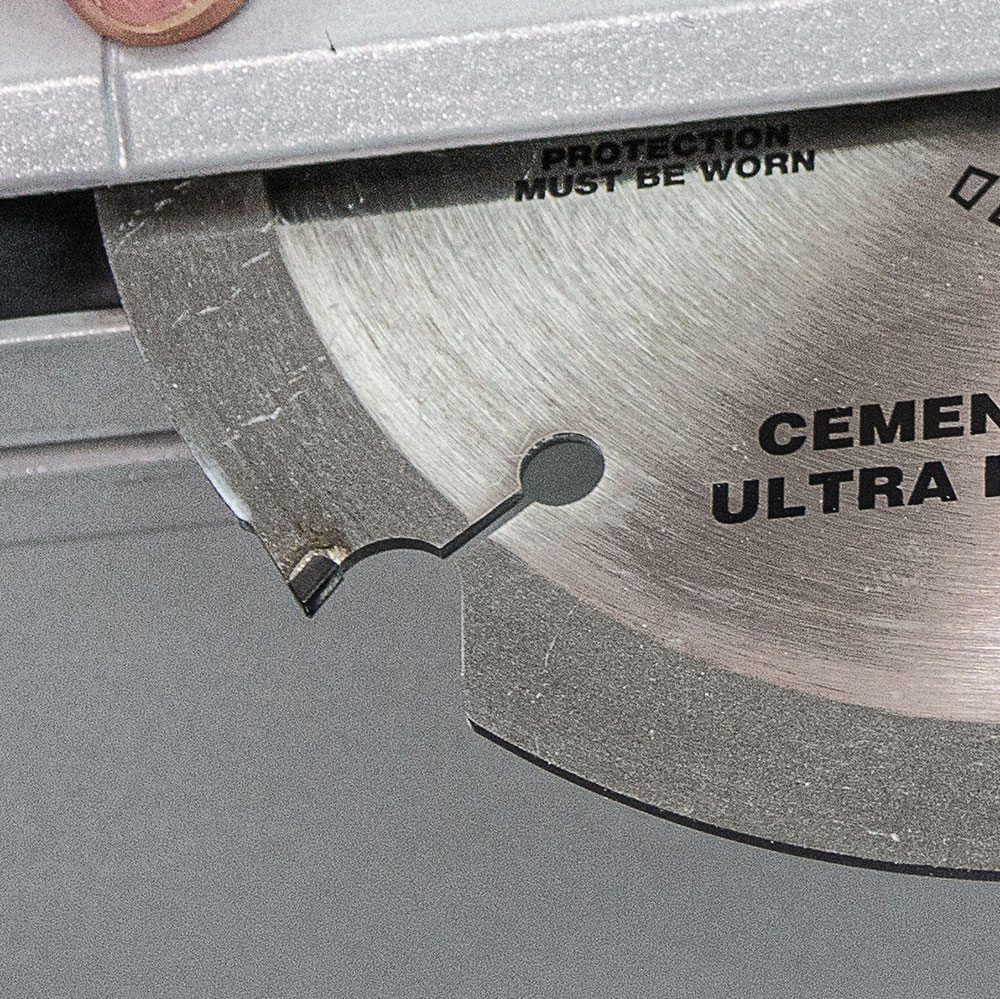

- Expansion slots improve heat dissipation to minimise vibration, prevent kick-back and improve cut quality.
- Etched blade information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
- Compatible with Bosch Pro GKS 18V-57 G, Bosch Pro GKS 18V-57, Bosch Pro GKS 18V-57-2, Bosch Pro GKS 18V-57-2 L, Bosch Pro GKS 18V-LI, Bosch Pro GKS 55+ G, Bosch Pro GKS 55+ GCE, Bosch Pro GKS 165, Bosch Pro GKT 55 GCE, Dewalt DCS391, Dewalt DCS520, Dewalt DCS565, Dewalt DWE550, Dewalt DWS520, Einhell TE-CS 18/165-1 Li, Einhell TE-PS 165, Evolution F165CCSL, Evolution R165CCS-Li, Evolution R165CCSL, FLEX CS 62 18.0-EC C, Hikoki C18DBAL, Hikoki C1806DA, Hikoki C1806DB, Hikoki C3606DA, Hikoki C3606DB, Hikoki C3606DUM, Hyundai HY2183, Kress KUE12.9, Makita BSS611, Makita DHS660, Makita DHS661, Makita DHS680, Makita DSP600, Makita DSP601, Makita DSS610, Makita DSS611, Makita HS012G, Makita HS6601, Makita SP001G, Makita SP6000, Metabo KS 18 LTX 57, Metabo KS 18 LTX 66 BL, Metabo KT 18 LTX 66 BL, Metabo MKS 18 LTX 58, Milwaukee M18 FPS55

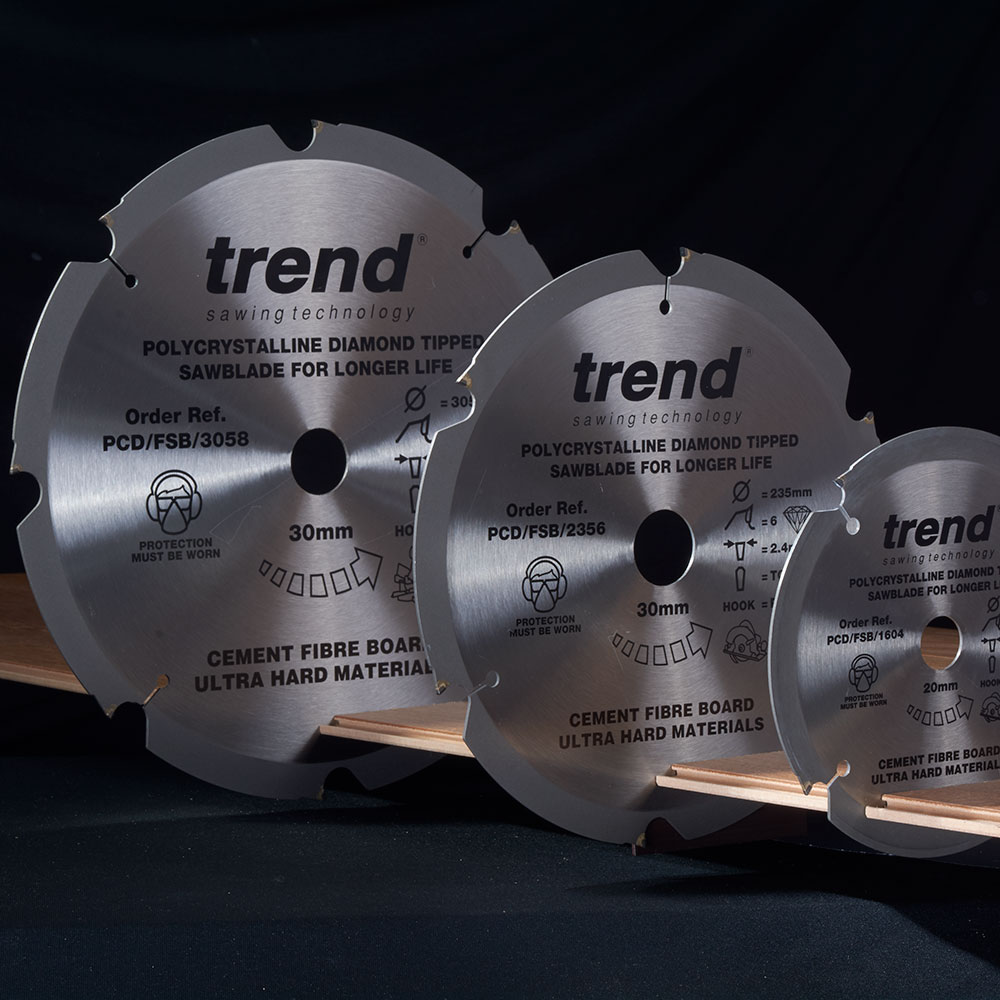

PCD Sawblades
Shop a variety of Polycrystalline Diamond Tipped sawblades with different tooth forms, tooth counts and hook angles for circular, mitre and plunge saws. Designed to cut composite decking, fibre cement board/cladding, carbon fibre-reinforced polymer, glass-reinforced plastic, compact laminate and MDF.

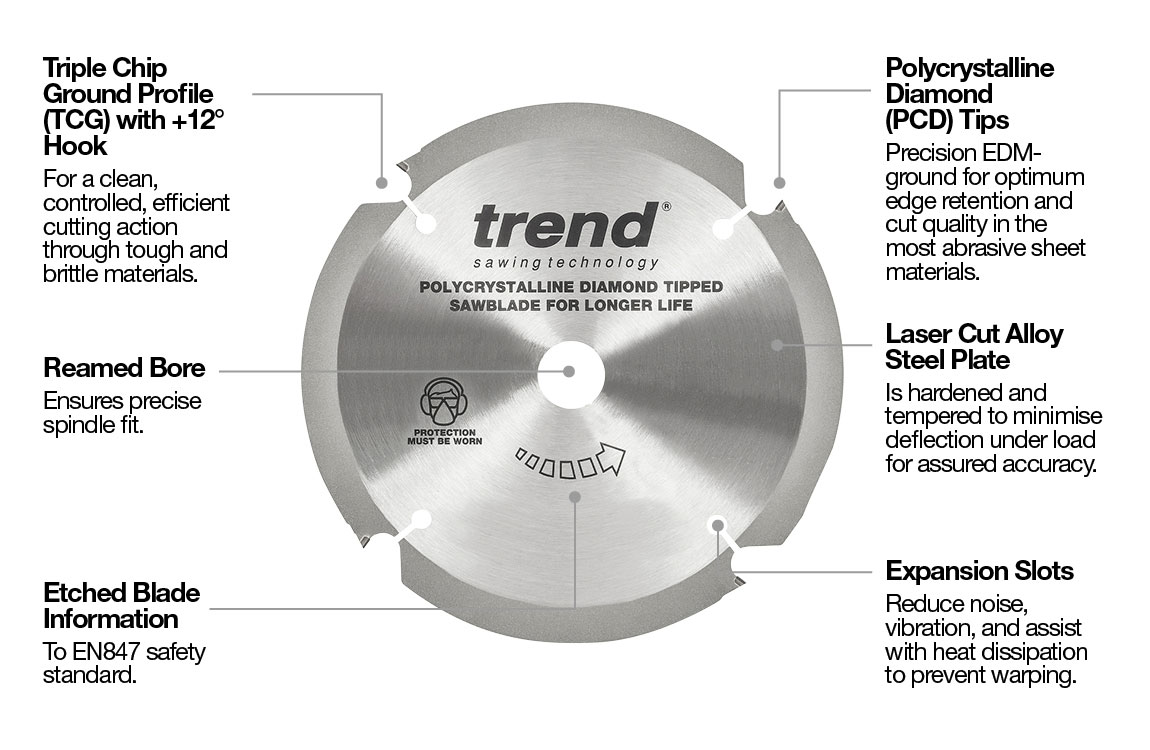

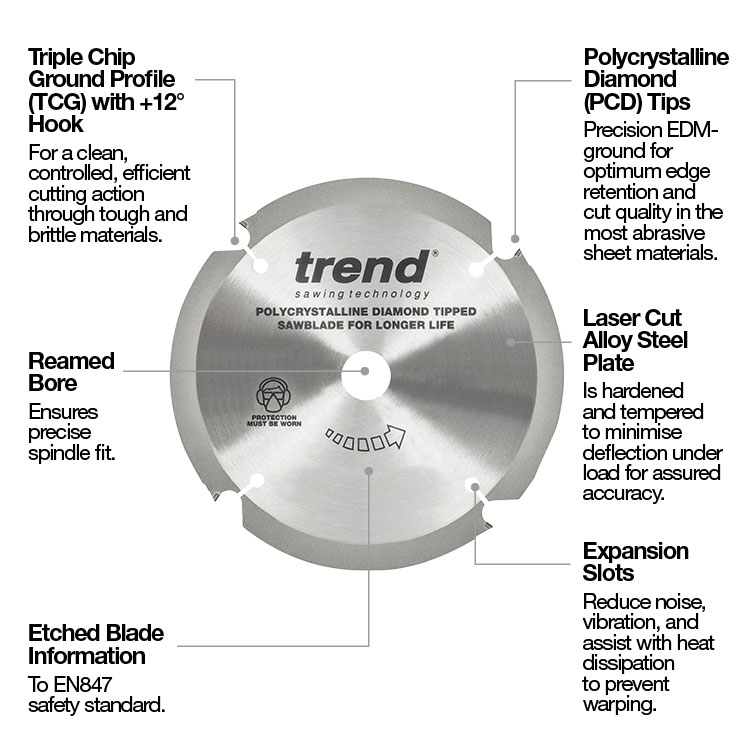

Features
Polycrystalline Diamond (PCD) Tips for precision EDM-ground for optimum edge retention and cut quality.
The Triple Chip Ground Profile with +12° Hook for a clean, controlled, efficient cutting action through tough and brittle materials.
Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection.
Expansion Slots reduce noise and vibration and assist with heat dissipation.
Reamed Bore ensures precise spindle fit.

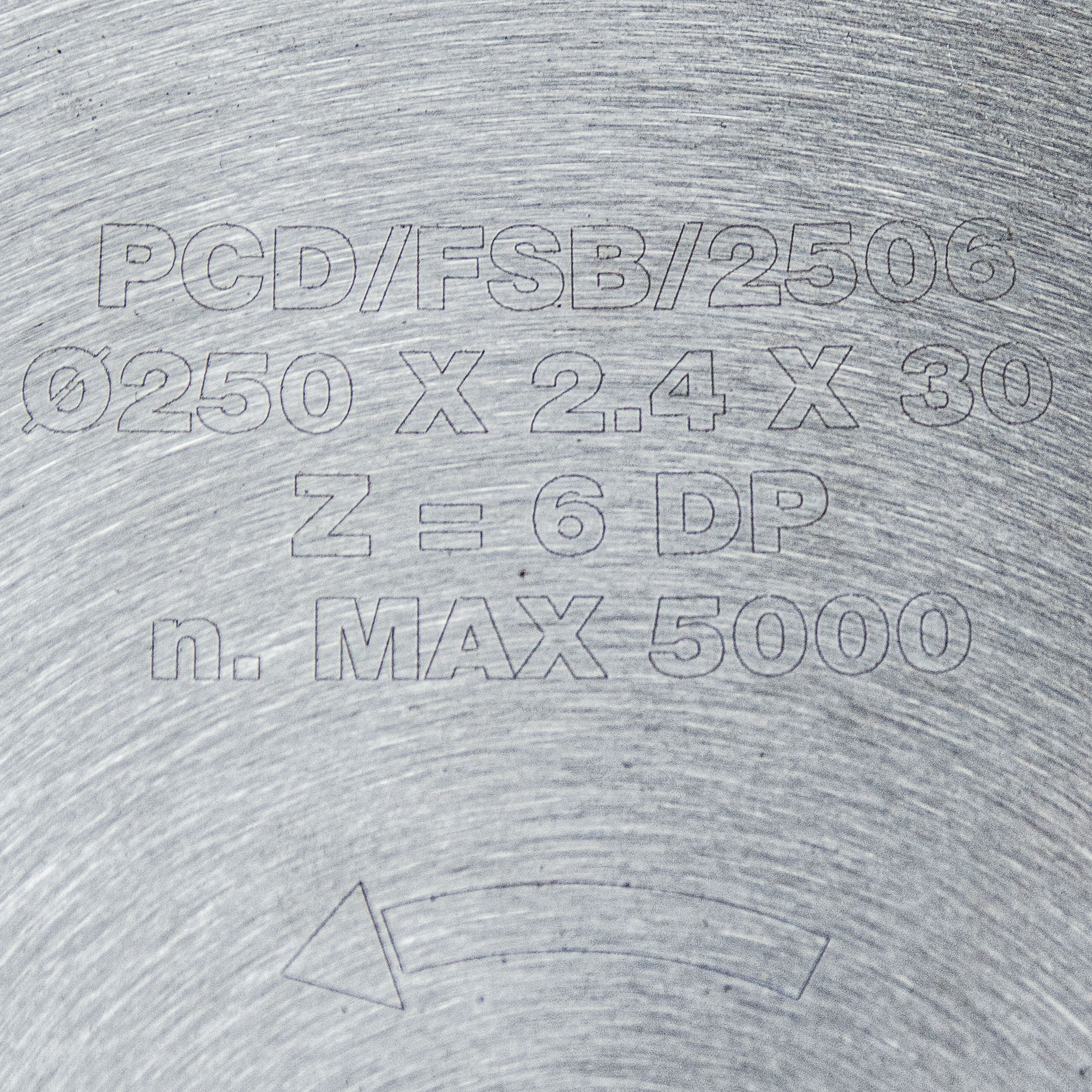

Etched Blade Information to EN847 safety standard.
Detail
- Polycrystalline Diamond (PCD) Tips precision EDM-ground for optimum edge retention and cut quality in the most abrasive sheet materials.
- Triple Chip Ground Profile (TCG) with +12° Hook for a clean, controlled, efficient cutting action through tough and brittle materials.
- Laser Cut Alloy Steel Plate is hardened and tempered to minimise deflection under load for assured accuracy.
- Expansion Slots reduce noise and vibration, and assist with heat dissipation to prevent warping to maximise cut quality.
- Etched Blade Information to EN847 safety standard.
- Reamed Bore ensures precise spindle fit.
Featured Products
Discover more about Trend Sawblades
Sawblade Range Information
Sawblade Products
Sawblade Videos
- D1
- 6 1/2 inches
- D1
- 165 mm
- Bore
- 20 mm
- Kerf
- 1.8 mm
- Plate thick
- 1.4 mm
- No. of Teeth
- 4
- Tooth form
- TCG
- Hook
- 12 degrees
- Quick Selector No.
- 8B.2
- Cut Finish
- Coarse
- Max rpm
- 8000
It is recommended that the blade should not project more than 1mm out of bottom of substrate.
DeWalt DWS520, Makita SP6000, Bosch GKT 55 GC, Triton TTS1400, Draper PS1200D, Titan TTB673CSW, Parkside PTSS 1200 B1, Macallister LT63006S, Macallister MSPS1200
