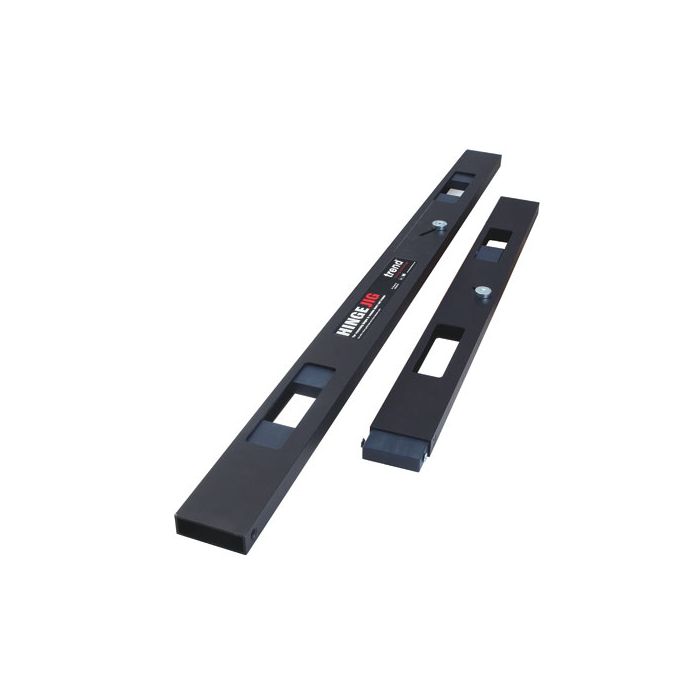

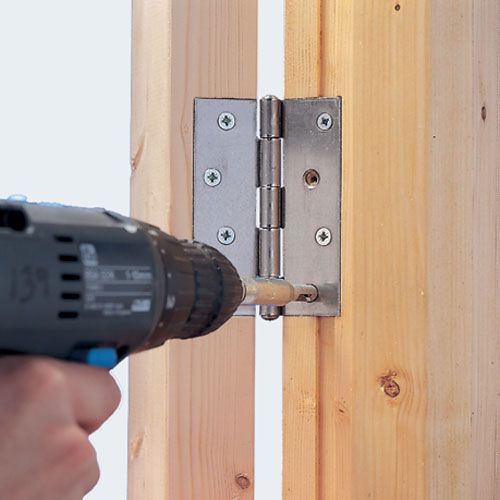

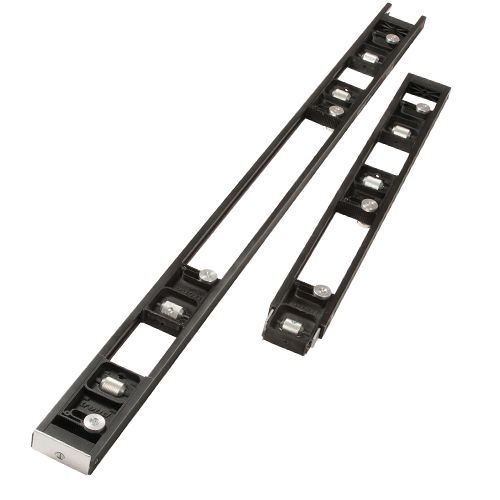

H/JIG/A - Trend Hinge Jig A - Two piece jig for quick, accurate repeatable fitting of hinges to doors and frames

Name: H/JIG/A - Trend Hinge Jig A - Two piece jig for quick, accurate repeatable fitting of hinges to doors and frames
SKU: H/JIG/A
Price: 220.36 AUD
Availability: InStock

H/JIG/A

A$440.72

Add to Wish List

Details

The two part Contractor Hinge Jig is a portable template set designed for recessing hinges in wooden doors & frames using a plunge router.

It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Can be used on both inside and outside doors, rebated frames and on maximum 25mm thick fixed stops.

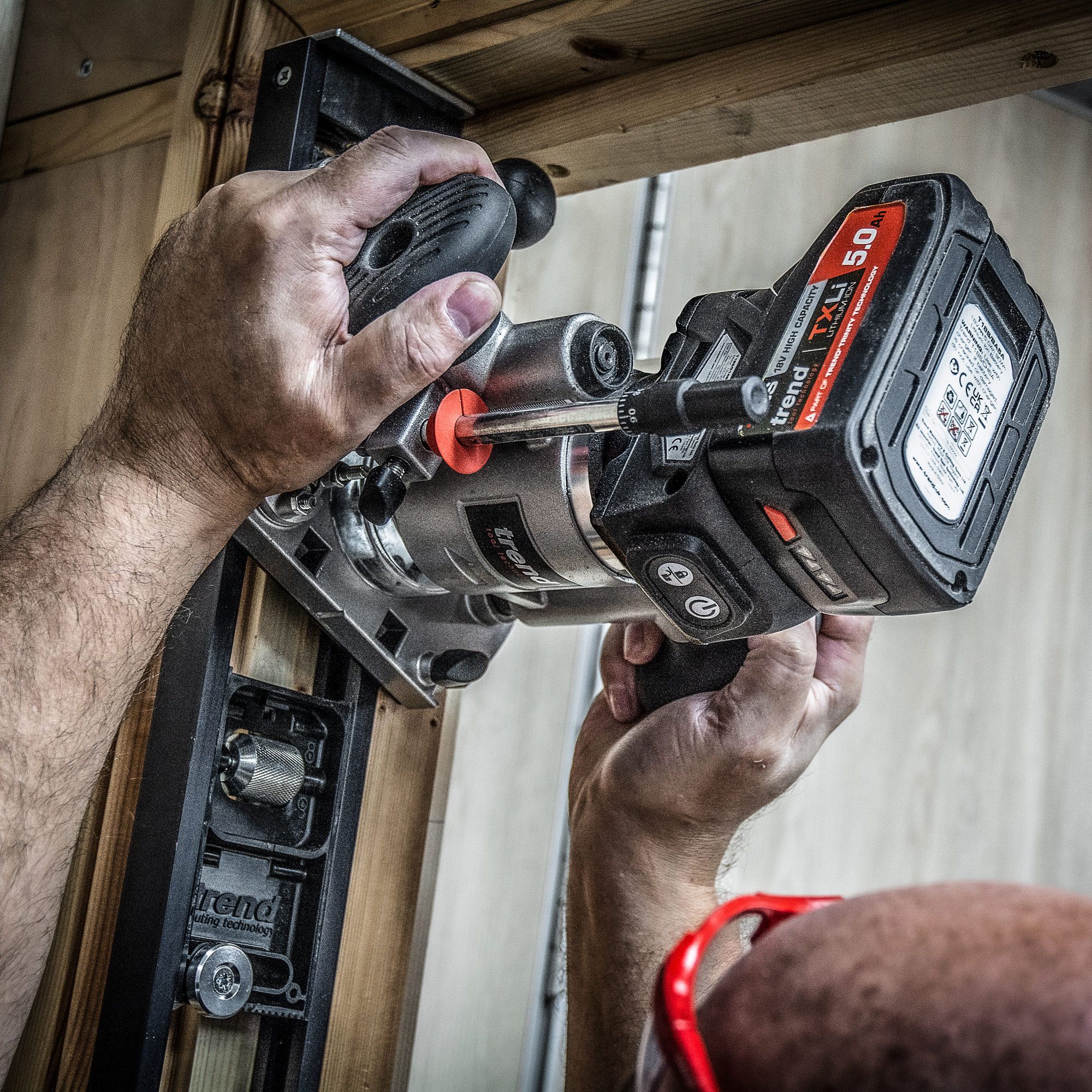

Use with a light duty plunge router with 1/4 inch collet.

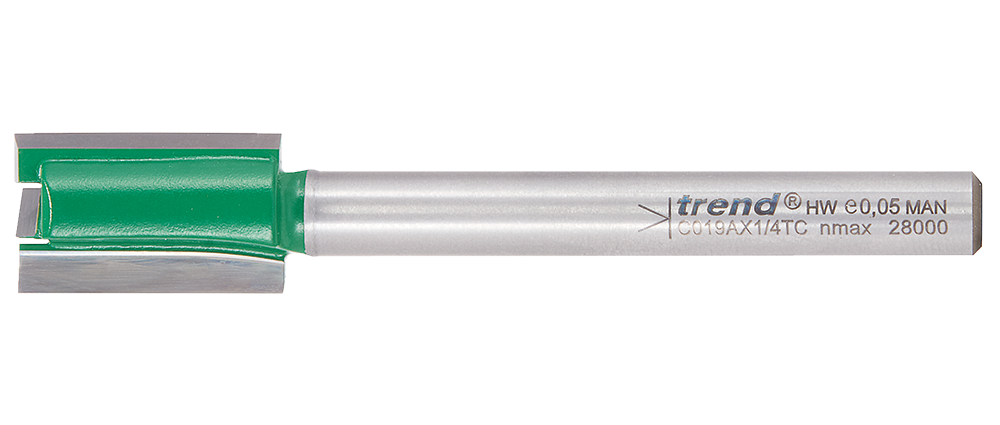

Long reach router cutter required, 12mm diameter with 70mm overall length.
Angled position slots to prevent creep.
Unibase may be needed.
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Spec

Hinge sizes

Length min.: 2 5/8" (67 mm)
Length max.: 5" (127 mm)
Width min.: 3/8" (9.5 mm)
Width max.: 1 3/8" (35 mm)
Width max. in 35mm rebate: 20 mm
Width max. in 44mm rebate: 30 mm

Door sizes possible

Height min.: 6' 5" (1955 mm)
Height max.: 2100 mm*
Thickness min.: 5/8" (16 mm)
Thickness max.: 2" (51 mm)
Weight: 3.3 kg
Jig overall length: 1957 mm
Plate thickness: 2 mm
Fixed stop max. thickness: 25 mm**

* Please note for doors over 2040mm the bottom hinge will be higher than 9" up.

** Max. hinge leaf width 20mm (35mm doors)

Customer Review

Spares

Product Image	Product Ref	Description	Price for 1
	CASE/HJ/A	Fabric case for the H/JIG/A hinge jig. Adjustable shoulder strap. Padded with inside accessory pocket. Hook and loop flap closure. Hand carry strap. Contents not included.	A$57.88
	GB160	Guide bush guides the router when using a template. Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers. Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.	A$31.06
	WP-AKT/01	Replacement T bar 4mm hex key for the HINGE/JIG.	A$17.52
	WP-HJ/01A	Replacement upper template only for the H/JIG/A. Extrusion only, no blocks or fixings included.	A$216.48
	WP-HJ/02	Replacement block for the HINGE/JIG.	A$20.02
	WP-HJ/03	Replacement upper edge stop for the HINGE/JIG.	A$6.92
Out of Stock	WP-HJ/04	Replacement lower edge stop for the HINGE/JIG.	A$6.92
	WP-HJ/06	Replacement swivel end plate for the HINGE/JIG.	A$10.62
	WP-HJ/08	Replacement nylon spacer for the HINGE/JIG.	A$5.08
	WP-HJ/10	Replacement feeler gauge for the HINGE/JIG.	A$8.72
	WP-HJ/12	Replacement jointing block for the HJ/JIG/A.	A$17.52
	WP-SCW/51	Replacement machine screw.	A$2.02
	WP-SCW/52	Replacement machine screw.	A$2.02
	WP-SCW/56	Machine screw.	A$2.02

Videos & Downloads

Videos

Lock Jig Video

Using the Lockjig to rout a door lock.

Hinge Jig Video

Demonstrating how easyand quick it is to hang a door using a hinge jig

Instructions

HINGE/JIG Hinge Jig Instructions

Ref: MANU/HJ v10

Safety Sheets

Cutting Tools & Routing Safety Sheet

Ref: LEAF/HS/CUTT

Jig and Accessory Safety Points

Spares Diagrams

HINGE/JIG & H/JIG/A Hinge Jig Spares Diagram

Test Reviews

Product Questions

Which Hinge Jig works with a 3.5 inch hinge with .25 inch corner radius?

All of our jigs strait from the box will produce a 6mm radius, a 0.25 inch radius would be 6.35mm.

In the compatibility chart, it indicates you cannot use certain routers with the hinge jig, why?

This is just a recommendation because of the heavier weight of the router which makes if difficult to recess the top hinge on the door lining or frame.

Is the HINGE/JIG, H/JIG/A and H/JIG/C suitable for routing out 10mm radius round-ended hinges?

If you fit a GB240 guide-bush, which has a 24mm diameter and longer spigor) and use a 20mm diameter cutter e.g. Ref: TR20DX1/4TC then it will work because the offset between the cutter and the guide-bush still remains 2mm each side.

What are the possible hinge sizes for the hinge jig?

Length min = 2 5/8" - max. 5" , Width min = 3/8" - max. 1 3/8"

After recessing the hinges with the hinge jig is the job complete?

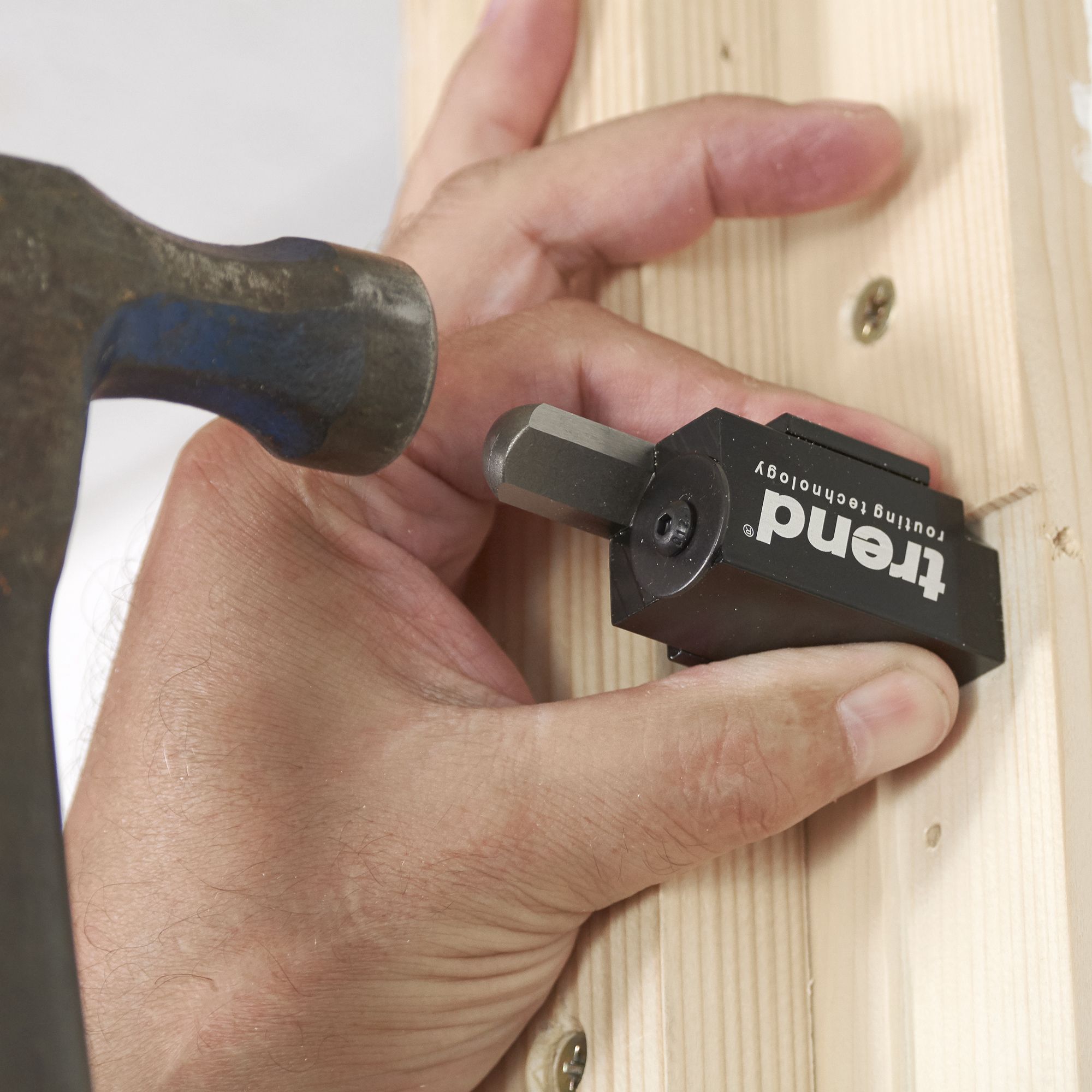

The corners need to be squared with a chisel because the router cutter leaves a radius. We offer a corner chisel ref. C/CHISEL which has a High Speed Blade for this purpose. The chisel is placed in the recess and hit with a hammer, this creates a square corner.
