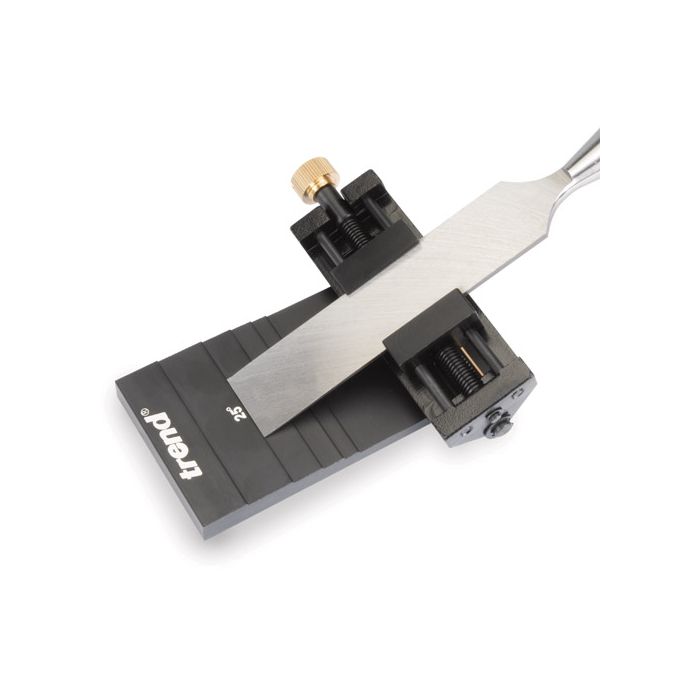

DWS/HG/SET - Diamond Honing Guide Set

DWS/HG/SET
A$122.42

Ensure correct angle is maintained on bevel edge chisels and plane irons when used with diamond whetstone.

  • Precision roller with alloy body which self-centre clamps bevel edge chisels from 3/8 inch (10mm) to 1-1/4 (32mm) and plane irons up to 2-3/8 inch (60.3mm) wide. Maximum tool thickness 7mm.
  • The setting device is preset for 25 degree, 30 degree, 35 degree and 40 degree angles.
  • Positive location for roller and blade.
  • Adjustable stop for setting blade angle.
  • Use with 63mm (2 1/2 inch) wide x 178mm (7 inch) long bench stones or workshop stones.
  • Not for use with Firmer chisels or short blade (Butt) chisels.
Chisel blade width min.
10 mm
Chisel blade width max.
32 mm
Chisel blade thickness max.
7 mm
Chisel blade length min.
75 mm*
Plane blade width max.
60.3 mm
Angle
25 deg, 30 deg, 35 deg & 40 deg
Product Image Product Ref Diagram No Description Quantity Required Price for 1
DWS/HG/01 - Diamond Honing Guide Body DWS/HG/01

A diamond honing guide to ensure the correct angle is maintained on chisels and plane irons when used with a diamond whetstone.

  • Honing guide body only.
  • Included in Diamond Honing Guide Set Ref. DWS/HG/SET.
A$90.10

Videos

DWS - Honing Guide Video

Ensures correct angle is maintained on chisels and plane irons when used with diamond sharpening whetstone.

DWS - Care & Maintenance Video

How to look after your Diamond Sharpening Whetstone products.
