DG/JIG/A - Drainer Groove Jig
DG/JIG/A

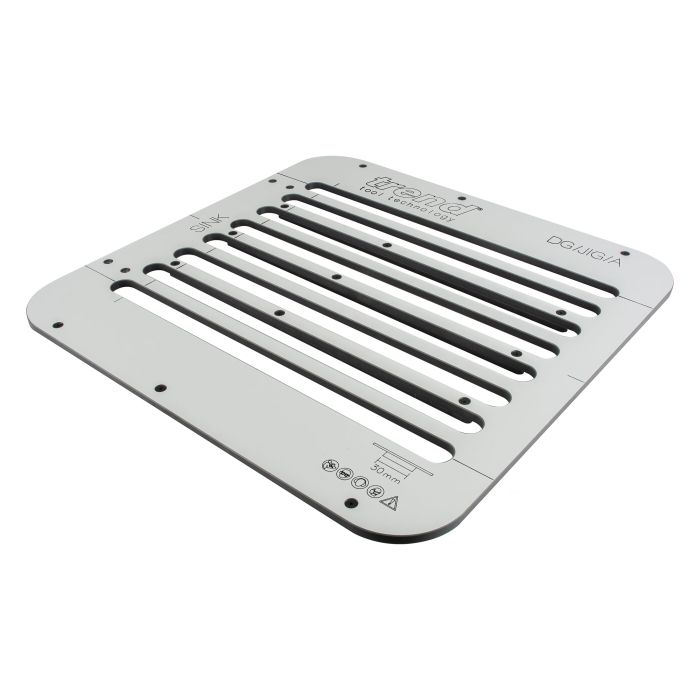

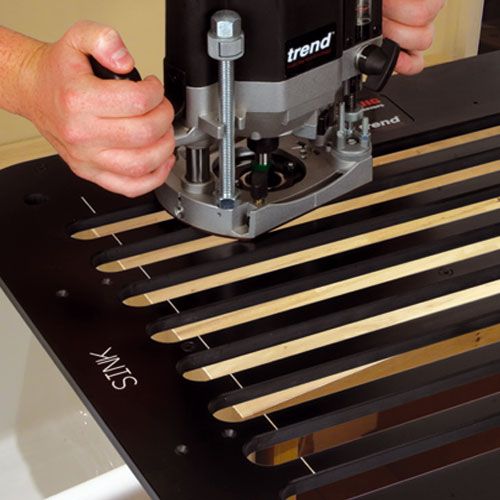

A precision jig for routing draining grooves in solid timber and compact laminate worktops when installing Belfast, farmhouse, and undermount sinks.
- CNC-Machined Compact Grade HPL provides precision, strength and durability.
- 5 Tapered Support Runners for ultimate router support and maximum groove accuracy.

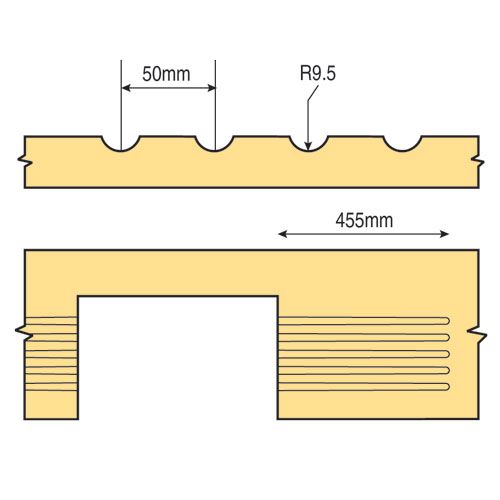

- 8 x 445mm Drainer Grooves at 50mm centres.
- Etched Sight Lines for quick setup.
- In-Built 0.5° Fall minimises setup time.
- Custom Edge-Guide Facility to accommodate user-made stops for custom, repetitive installations.

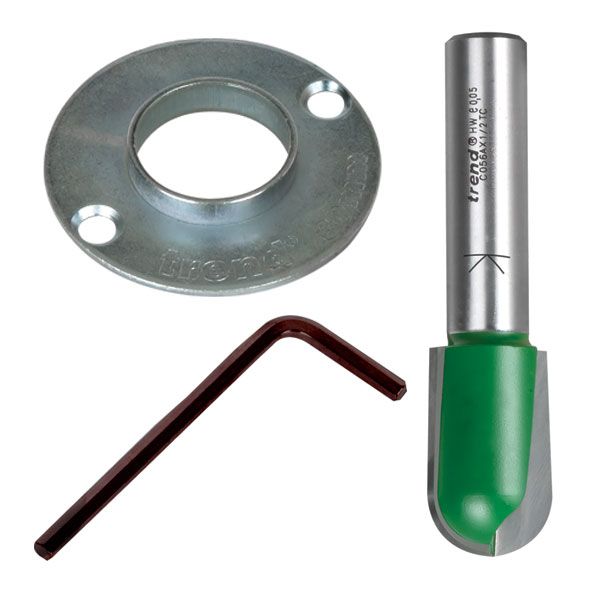

- Requires: ½” Router (min.1300W), 30mm Guide Bush, Cutter, 3 x F-Clamps.
- Fall
- 0.5 degree
- Groove Pitch
- 50 mm
- Groove Length
- 445 mm
- Jig Length
- 600 mm
- Jig Width
- 585 mm
- Jig Thickness
- 12 mm
- Weight
- 4.3kg
no spare products
Videos
Trend Draining Groove Jig video
The Trend DG/JIG Draining Groove Jig.
