Group

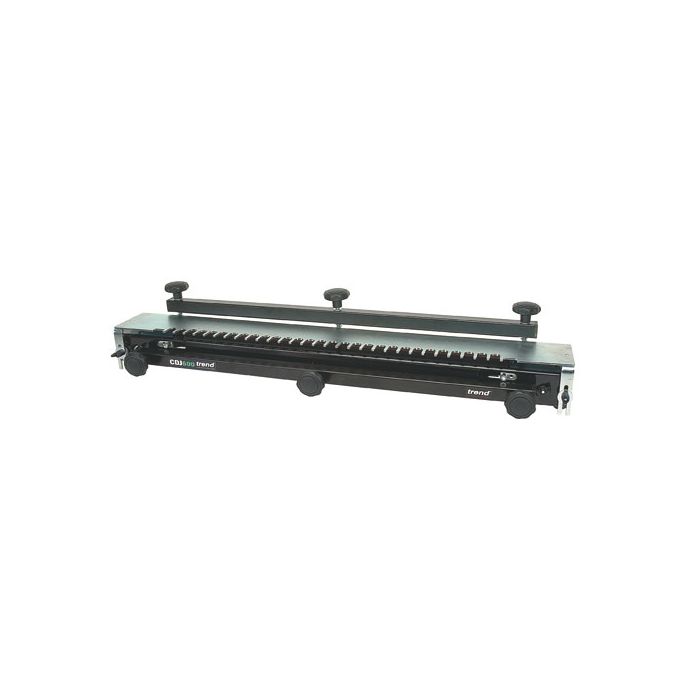

CDJ600 - Craft Dovetail Jig 600mm 1/4-inch shank

CDJ600
A$378.32

An accurate and easy to use Dovetail Jig for a variety of elegant dovetail joints.

  • Cuts 12.7mm (1/2 inch) wide half blind dovetails or rebated dovetails in one operation.
  • Precision made laser cut zinc plated steel template with packing piece.
  • Adjustable offset stops.
  • A Unibase and fine height adjuster may be required for certain makes of router.
  • A range of accessory templates are available for box joint, dowel and through dovetails.
Rating
Craftsman
Dovetail size
12.7 mm
Cutter shank
1/4"
Workpiece width max.
600 mm
Workpiece thickness min.
12 mm
Workpiece thickness max.
25 mm
Guide bush size
15.8 mm
Router base dia. max
180 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
C041AX1/4TC - Dovetail cutter angle=104 degrees 12.7mm diameter C041AX1/4TC 023

These dovetail cutters produce a tight reliable joint for drawers, boxes etc.

  • Refs. C154 & C041A can be used with Trend CDJ300, CDJ600 & DJ300 dovetail jigs.
  • To suit user preference, the table shows angles from the horizontal and the profiles show angles from the vertical.
1 A$47.38
GB158 - Guide bush 15.8mm x 6mm CDJ300 GB158 020

Guide bush guides the router when using a template.

  • Fits directly to Trend T3,T4,T5,T5 MK2, T9,T10 and T11, and some other light duty routers.
  • Will fit other makes when used with GB/5, GB/PLATE or UNIBASE Sub-base.
1 A$25.60
WP-AP/05 - Hex key short arm 5mm A/F WP-AP/05 019

Hex key for the CDJ600.

    1 A$4.96
    WP-CDJ/03 - Craft dovetail Jig clamp spring WP-CDJ/03 003

    Replacement CDJ300 & CDJ600 clamp spring.

      4 A$2.08
      WP-CDJ/04 - Washer WP-CDJ/04 004

      Replacement CDJ300 & CDJ600 washer.

        4 A$2.08
        WP-CDJ/05 - Clamp knob male M8 x 80mm WP-CDJ/05 005

        Replacement CDJ300 & CDJ600 clamp knob.

          2 A$11.36
          WP-CDJ/17 - Foot WP-CDJ/17 017

          Replacement CDJ300 rubber foot.

            4 A$3.92
            WP-CDJ/46 - Knob female M6 WP-CDJ/46 046

            Replacement CDJ300 knob.

              2 A$11.36
              WP-CDJ600/01 - Craft dovetail 600mm Jig body WP-CDJ600/01 001

              Replacement CDJ600 jig body.

                1 A$332.40
                WP-CDJ600/02 - Clamping bar with grip CDJ600 WP-CDJ600/02 002

                A clamping bar with grip for the CDJ600.

                  2 A$52.30
                  WP-CDJ600/11 - Trend CDJ600 Label WP-CDJ600/11 011

                  Replacement label for the CDJ600.

                    1 A$5.52
                    WP-CDJ600/13 - CDJ600 knob female M8 WP-CDJ600/13 013

                    Replacement knob for the CDJ600.

                      2 A$5.68
                      WP-CDJ600/67 - Sliding stop bar left CDJ600 WP-CDJ600/67 067

                      Replacement sliding stop bar left for the CDJ600.

                        1 A$17.10
                        WP-CDJ600/68 - Sliding stop bar outer CDJ600 WP-CDJ600/68 068

                        Replacement sliding stop bar right for the CDJ600.

                          1 A$17.10
                          WP-CDJ600/70 - Sliding stop U bracket CDJ600 WP-CDJ600/70 070

                          Replacement sliding stop 'u' bracket for the CDJ600.

                            2 A$9.60
                            WP-CDJ600/71 - Sliding stop clamp spacer WP-CDJ600/71 071

                            Replacement sliding stop clamp spacer for the CDJ600.

                              2 A$9.60
                              WP-CDJ600/72 - Sliding stop clamp spacer (Hole) WP-CDJ600/72 072

                              Replacement sliding stop clamp spacer for the CDJ600.

                                2 A$7.50
                                WP-CDJ600/73 - Sliding stop clamp spacer (Tapped) WP-CDJ600/73 073

                                Replacement sliding stop clamp spacer for the CDJ600.

                                  2 A$7.50
                                  WP-CDJ600/77 - Set screw hex M6 x 35mm CDJ600 WP-CDJ600/77 077

                                  Replacement screw for the CDJ600.

                                    2 A$2.08
                                    WP-NUT/09 - M8 nyloc half hex nut WP-NUT/09 015

                                    Replacement nut.

                                      2 A$1.98
                                      WP-SCW/09 - M5 x 8mm countersunk slot machine screw WP-SCW/09 021

                                      Replacement screw.

                                        2 A$2.06
                                        WP-SCW/79 - M4 x 25mm csk socket machine screw WP-SCW/79 075

                                        Replacement machine screw.

                                          4 A$1.98
                                          WP-SPAN/13P - Spanner 13mm pressed steel WP-SPAN/13P 078

                                          Pressed steel spanner.

                                            1 A$9.60
                                            WP-WASH/12 - Washer for M6 Form C 6.5mm ID x 14mm OD WP-WASH/12 014

                                            Replacement washer.

                                              2 A$1.98
