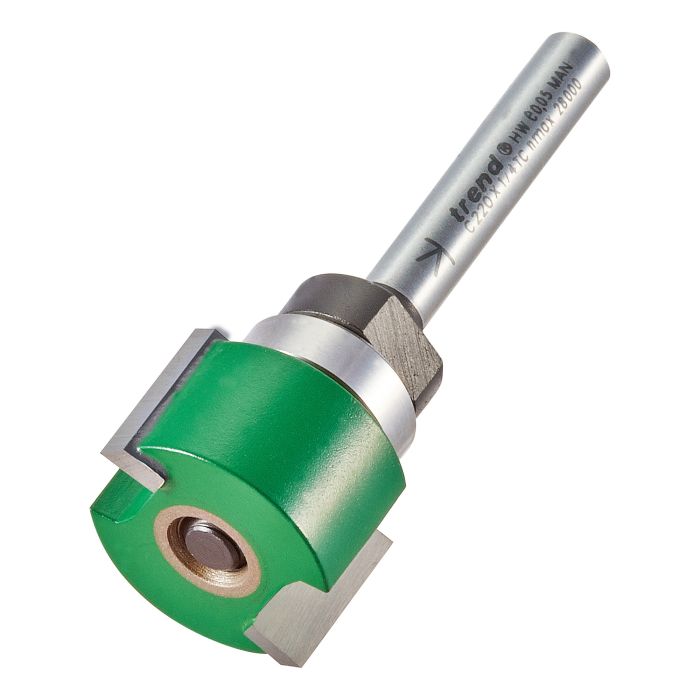

C220X1/4TC - Intumescent cutter 15mm x 24mm

C220X1/4TC
A$89.52

Trend Craft Pro 1/4in shank Intumescent strip cutter - 15mm width Two Flute Carbide tips.

  • Cuts the perfect sized slot into door edges and door frames for fast, perfectly flush fitting of intumescent strip.
  • Bearing guide ensures the correct 4mm depth and 15mm width is always achieved to meet Fire Regulations.
  • 1/4in shank, ideal for easy control with smaller routers. Position of groove can be altered with the router plunge for correct setting for 45 minutes fire and smoke protection.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
D
24 mm
C
15 mm
B
16 mm
E
4 mm
Shank Diameter
1/4 inch
OL
63 mm
Fire check
30 minutes
Product Image Product Ref Diagram No Description Quantity Required Price for 1
33/25X1/4 - Threaded arbor 33/25X1/4

A threaded arbor for use with a UNC1/4 bore groover.

    A$32.88
    B16 - Bearing 5/8" diameter 1/4" bore B16

    Bearings are shielded to prevent penetration of dust and grease packed for life.

    • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
    • Scrape off any resin build-up.
    • Always check the tightness of the fixing screw before using cutter.
    A$12.12
    BWASH/14 - Bearing washer 1/4" bore BWASH/14

    Replacement 1/4 inch bore bearing washer.

      A$3.80

      Videos

      Bearing Guided Cutter Video

      Our video guide on how to use your bearing guided cutters, the different types and applications.
