Group

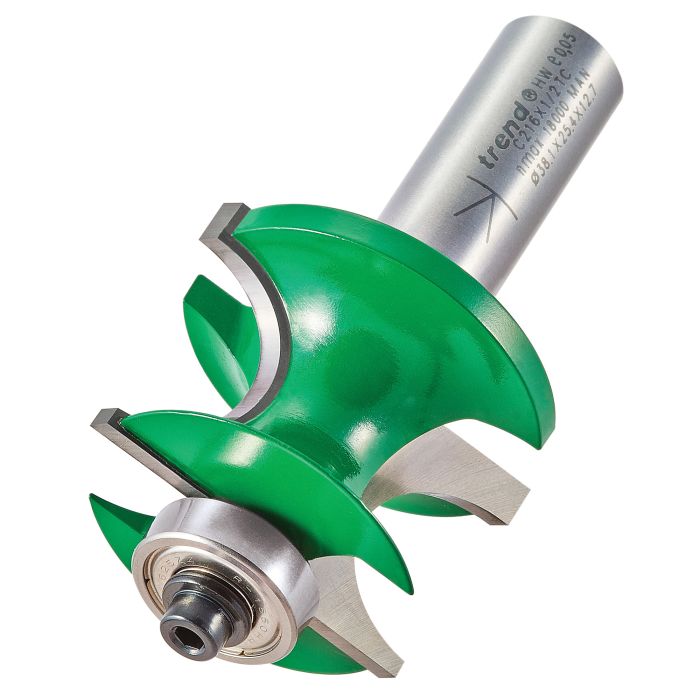

C216X1/2TC - Bearing guided corner bead 9.5mm radius

C216X1/2TC
A$134.48

Attractive edge moulds. A full corner bead

  • can be produced by making a second pass at 90 degrees.
D
38.1 mm
D2
34.7 mm
C
26 mm
B
16 mm
R
9.5 mm
OL
74 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B16F - Bearing 16mm diameter 5mm bore B16F

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
A$31.12
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
A$7.32

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
