C204X1/2TC - Easyset profile scribe bevel 10 degree
C204X1/2TC
The classic method of producing cabinet panelled door and drawer fronts is made easy with these Profile Scriber sets. With the combination type, components are re-arranged on the arbor to cut the profile or the scribe.
- Cuts both parts of the joint by only changing the cutter height. No reassembly of the tool is required so saving time.
- Router table use only. 1/4 inch and 8mm shanks should only be used with a medium or heavy duty router. For certain routers the aperture in the base may need to be enlarged. A workholding device should be used when cutting the scribe cut on the rail ends. The cutting edges should be staggered to each other. When using Easyset cutters take several passes.

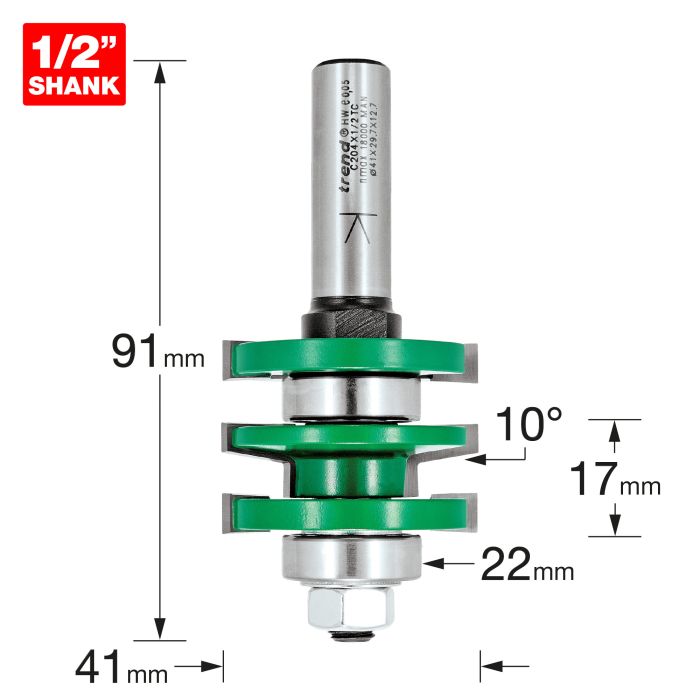

- D
- 41 mm
- C
- 17 mm
- C2
- 6.35 mm
- B
- 22 mm
- A
- 10 degrees
- Shank Diameter
- 1/2 inch
- OL
- 91 mm
- Timber thickness min.
- 18 mm
- Timber thickness max.
- 22 mm
For stationary machines at max. recommended speed 18,000 RPM
Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
---|---|---|---|---|---|
![]() |
BB22 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
A$29.74 |
