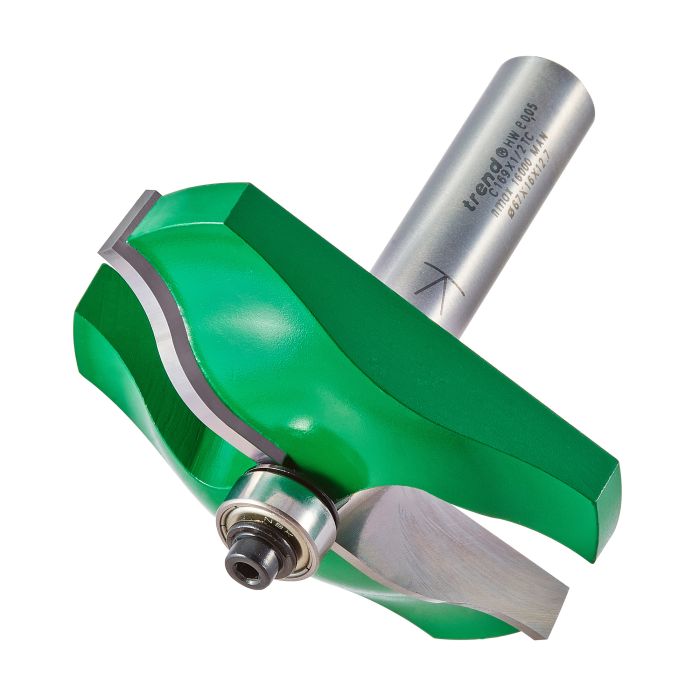

C169X1/2TC - Bearing guided ogee panel 17.5mm radius
C169X1/2TC
Panel raiser cutters for producing the panel for cabinet panelled doors, tool matches our range of profile scribers. Suitable for use on natural timber and MDF.
- For use in a router table only.
- Take several passes, increasing the depth with each pass.
- Must be used in a stationary variable speed router either mounted overhead or inverted in a router table at a reduced speed. For use on natural timber and MDF.
- Stationary use only.
- D
- 67 mm
- C
- 5/8 inch
- C
- 16 mm
- B
- 12.7 mm
- R
- 17.5 mm
- OL
- 78.5 mm
- Shank Diameter
- 1/2 inch
For stationary machines at max. recommended speed 16,000 RPM
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B127A | Trend Router Cutter Bearing - for 3/16in bottom mounting
|
A$13.86 | ||
|
SP-J | Spare part packs make ordering spares easier.
|
A$5.66 |
