C152X1/4TC - Biscuit jointer set

C152X1/4TC
A$108.92

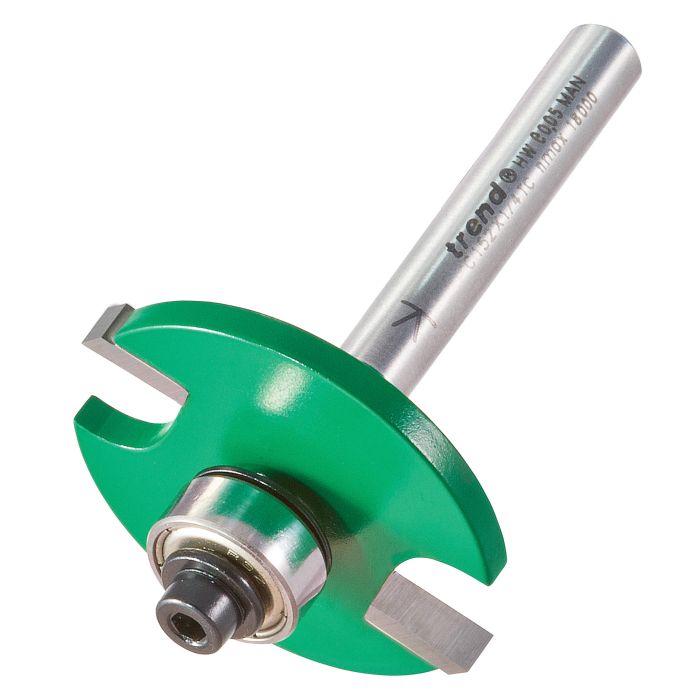

Trend Craft Pro 1/4in shank bearing guided biscuit cutter - 37.2mm diameter Two Flute Carbide tips.

  • Two flute carbide TCT tips for cutting biscuit slots in timber and timber based materials.
  • Supplied with three interchangeable bearings covering biscuit sizes 0, 10 and 20 covering furniture and joinery applications.
  • 1/4in shank , ideal for easy control on smaller, intricate work.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
D
37.2 mm
C
4 mm
B
12.7 mm
B2
16.0 mm
B3
19.0 mm
OL
63.5 mm
Shank Diameter
1/4 inch
Groove depths
9.05 mm, 10.6 mm & 12.25 mm
For biscuit sizes
No.0, 10 & 20
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A 002

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
1 A$13.52
B16A - Bearing 5/8" diameter 3/16" bore B16A 002

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 A$17.30
B19A - Bearing 3/4 diameter 3/16" bore B19A 002

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 A$21.82
SP-J - Spare part pack SP-J 003

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
1 A$5.52

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
