C079CX1/2TC - Bearing guided round over ovolo 31.8mm radius
C079CX1/2TC
Self-guiding cutters for rounding over edges do not require a side fence.
- They are supplied with two bearings.
- Use the larger bearing for a round-over.
- If the cutter is lowered, a top quirk can be produced.
- Bullnose mouldings can also be produced by taking a second pass from the opposite side of the workpiece.

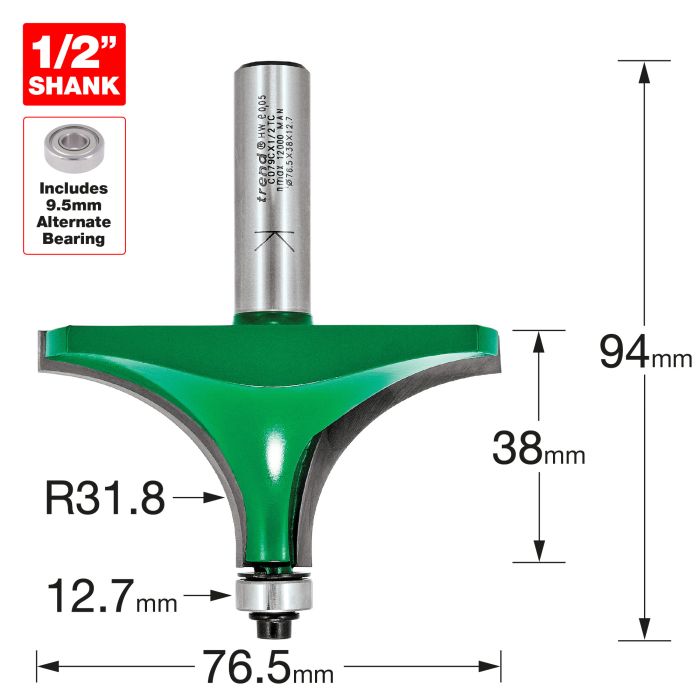

- D
- 76.5 mm
- C
- 38 mm
- B
- 9.5 mm
- B2
- 12.7 mm
- R
- 1 1/4 inch
- R
- 31.8 mm
- OL
- 94 mm
- Shank Diameter
- 1/2 inch
For stationary machines at max. recommended speed 12,000 RPM
Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
---|---|---|---|---|---|
![]() |
B127A | Trend Router Cutter Bearing - for 3/16in bottom mounting
|
A$13.52 | ||
![]() |
B95A | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
A$16.94 | ||
![]() |
SP-I | Spare part packs make ordering spares easier.
|
A$7.32 |
