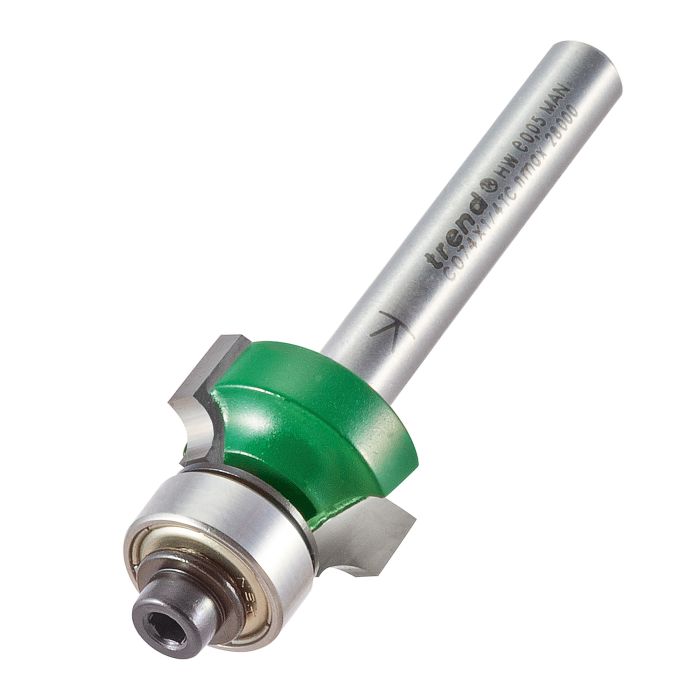

C074X1/4TC - Rounding over 3.2mm radius x 9.5mm cut

C074X1/4TC
A$70.48

Trend Craft Pro 1/4in shank bearing guided round over router cutter - 1/8in radius Two Flute Carbide tips.

  • Two flute carbide TCT tips for cleaner cutting edges and fast clearance of waste in all timber and timber based materials.
  • 1/8in imperial radius for matched replication. Leaves perfect fine round over detail for a contemporary eased edge profile on straight and curved edges.
  • Two bearings supplied for round over or quirked Ovolo moulding for additional detailing options. 1/4in shank for smaller routers and easy control for hand held use.
  • PTFE coating to minimise heat and resin build up for increased cutter performance and longevity.
  • 1/4in shank for easy control in smaller routers with 'K'mark shank to ensure safe working practices.
D
19.0 mm
C
3/8 inch
C
9.5 mm
B
9.5 mm
B2
12.7 mm
R
1/8 inch
R
3.2 mm
OL
61 mm
Shank Diameter
1/4 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
A$13.12
B95A - Bearing 3/8" diameter 3/16" bore B95A

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
A$16.44
SP-I - Spare part pack SP-I

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
A$7.10
