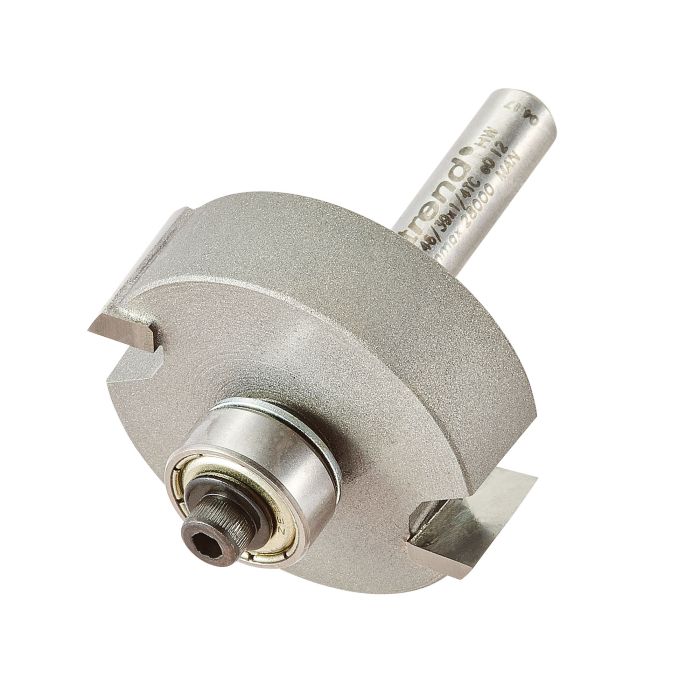

46/39X1/4TC - Bearing Guided 35mm Diameter Rebater

46/39X1/4TC
A$181.60

Popular rebate sets, which include different size bearings for a choice of rebates.

  • Ease of setting-up and accurate depth of cut.
  • Ideal for rebating straight and shaped work pieces.When using bearing Ref. B95A, make two passes when a full depth of cut is required by using a larger bearing first.
D
35 mm
C
12.7 mm
B
9.5 mm
B2
12.7 mm
B3
16 mm
B4
19 mm
OL
52 mm
Shank Diameter
1/4 inch
B19A
7.9 mm
B16A
9.5 mm
B127A
11.1 mm
B95A
12.7 mm
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B127A - Bearing 1/2" diameter 3/16" bore B127A F

Trend Router Cutter Bearing - for 3/16in bottom mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 3/16in inside diameter for use on bottom mounted trimmer and profiling cutters.
  • 1/2in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
1 A$13.12
B16A - Bearing 5/8" diameter 3/16" bore B16A G

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 A$16.80
B19A - Bearing 3/4 diameter 3/16" bore B19A H

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 A$21.18
B95A - Bearing 3/8" diameter 3/16" bore B95A E

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
1 A$16.44
SP-C - Spare part pack SP-C I,J,K

Spare part packs make ordering spares easier.

  • Packs include, hex key (if required), screw, washer and shield (if required).
1 A$7.10

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
