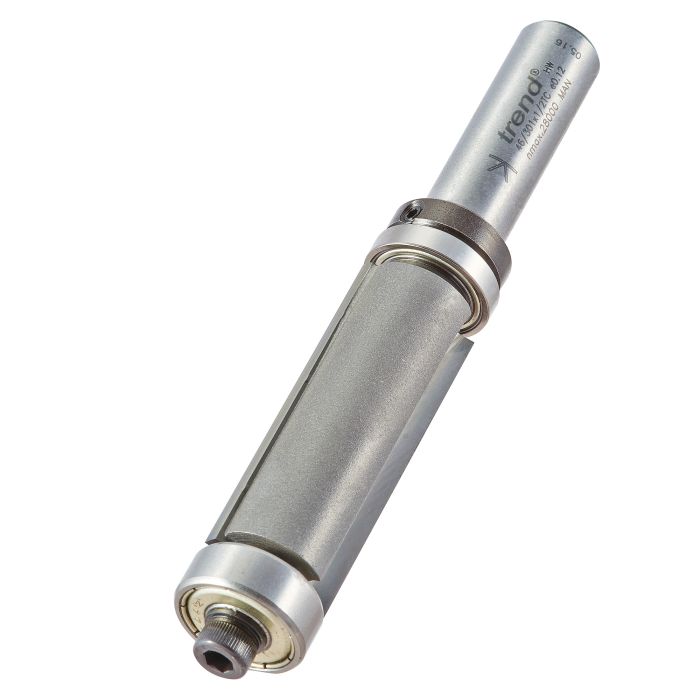

46/301X1/2TC - Double guided trim profile cutter

46/301X1/2TC
A$214.32

Ball bearings fitted to both nose and shank.

  • Allows templates to be placed either on top or the bottom of the material, for ease of routing.
  • Allows for irregular grained timber to be profiled more easily, by turning component other way up.
D
3/4 inch
D
19.1 mm
C
2 inch
C
51 mm
OL
114.5 mm
B
19.1 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B19 - Bearing 3/4" diameter 1/4" bore B19

Trend Router Cutter Bearing - for 1/4in shank mounting

  • High quality ball bearing for free running against an edge to prevent heat build up.
  • 1/4in inside diameter for direct fit to router shanks and arbors.
  • 3/4in outside diameter for matched fit to trimming and templating cutters.
  • Bearings are grease packed for maximum efficiency and lifespan.
  • Shielding to both sides of the bearing prevents penetration of dust for maximum performance.
A$13.52
B19C - Bearing 3/4" diameter 1/2" bore B19C

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
A$20.44

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
