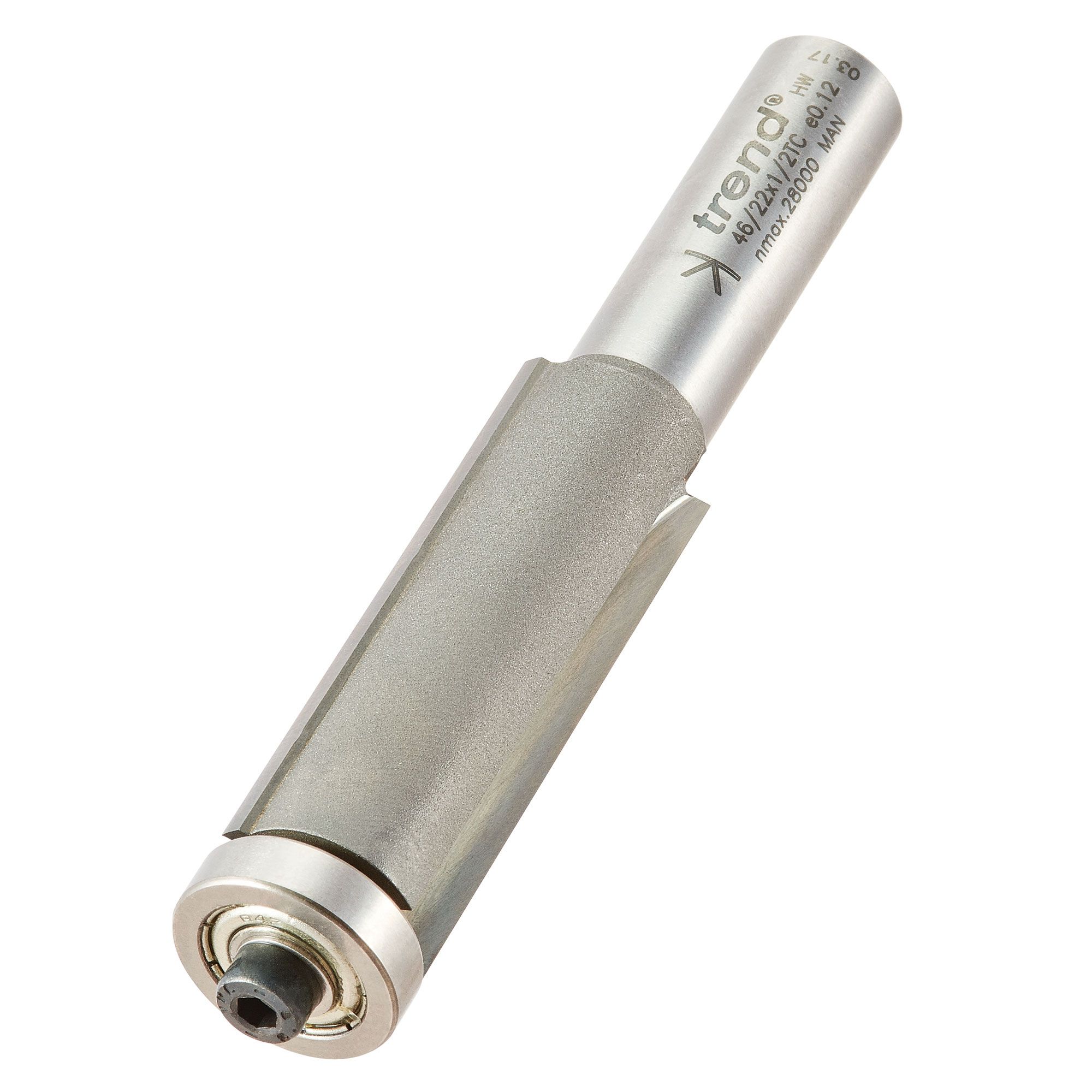

46/22X1/2TC - Trimming cutter 18.2mm diameter
46/22X1/2TC
Self-guiding trimmers with bearings mounted on end of cutter.
- For trimming plastic or plywood overlay.
- For copy profiling, use the bearing to follow a template or base edge of board.
- An approximate 3mm overlap should be left before copy profiling. When using plastic laminate adhesive to dry before trimming. This avoids clogging the guide bearing.
- D
- 18.2 mm
- C
- 50 mm
- B
- 18.2 mm
- A
- 90 degrees
- OL
- 103 mm
- Shank Diameter
- 1/2 inch
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
B182 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
A$25.60 | ||
|
SP-A | Spare part packs make ordering spares easier.
|
A$5.52 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
Safety Sheets
Product Questions
The grub screw size is M4x6mm.
