Group

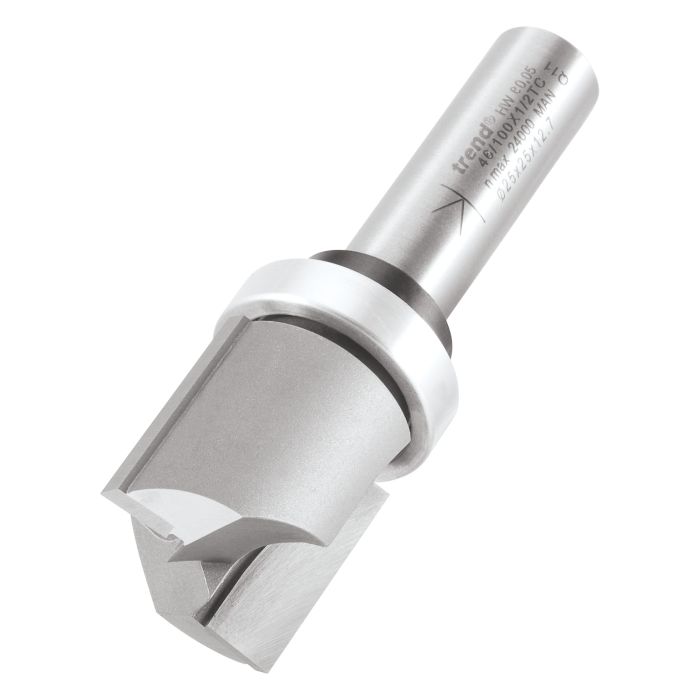

46/100X1/2TC - Guided profiler 25mm dia x 25mm cut

46/100X1/2TC
A$158.74

Profiler with shank mounted bearing guides.

  • For use with router mounted above or below a table when following a template.
  • For profiling and rebating applications only.
  • Not for plunge cutting/grooving.
  • A 3mm maximum overlap should be left before trimming.
  • They are ideal for template making.
D
25 mm
C
25 mm
B
25 mm
A
90 degrees
OL
73 mm
Shank Diameter
1/2 inch
Product Image Product Ref Diagram No Description Quantity Required Price for 1
B254G - Bearing 25.4mm diameter 15mm bore B254G

Bearings are shielded to prevent penetration of dust and grease packed for life.

  • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
  • Scrape off any resin build-up.
  • Always check the tightness of the fixing screw before using cutter.
A$37.96
COLL/12 - Collar pack COLL/12

Collar Packs are used for cutters with shank mounted bearings.

  • Packs include one collar, grub screw and hex key.
A$6.36

Videos

Bearing Guided Cutter Video

Our video guide on how to use your bearing guided cutters, the different types and applications.
