Group

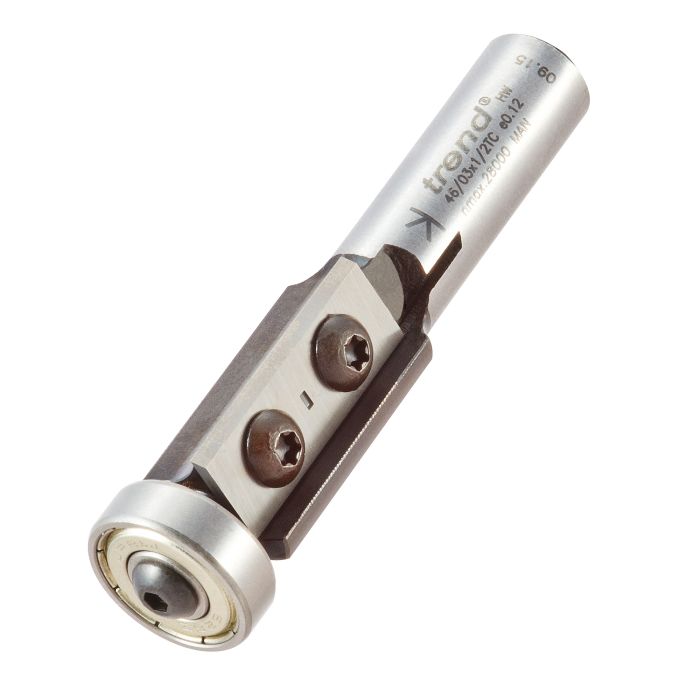

46/03X1/2TC - Rota-Tip cutter 19mm diameter

46/03X1/2TC
A$216.06

Blades of cutters can be rotated through 180 degrees to give one new cutting edge.

    D
    19 mm
    C
    30 mm
    B
    19 mm
    A
    90 degrees
    OL
    78 mm
    Shank Diameter
    1/2 inch
    Product Image Product Ref Diagram No Description Quantity Required Price for 1
    B19H - Bearing 19.0mm diameter 6mm bore B19H

    Bearings are shielded to prevent penetration of dust and grease packed for life.

    • They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure.
    • Scrape off any resin build-up.
    • Always check the tightness of the fixing screw before using cutter.
    A$23.88
    RB/F - Rota-Tip blade 30x12x1.5mm 1 off RB/F

    Replacement Solid Carbide blades.

    • Does not have bevelled ends for clearance.
    A$16.60
    RT/KEY - Rota-Tip spare Torx key RT/KEY

    Replacement key for the rota-tip cutters.

    • Gives positive and quick action to help prevent overtightening and to allow quick tightening of the screw.
    A$14.48
    SP-46/02D - Torx screw M4 x 5mm SP-46/02D

    Replacement screw for the rota-tip cutters.

      A$5.52
      SP-Y - Spare part pack SP-Y

      Spare part packs make ordering spares easier.

      • Packs include screw and shield.
      A$14.14

      Videos

      Bearing Guided Cutter Video

      Our video guide on how to use your bearing guided cutters, the different types and applications.
