346X1/2TC - Intumescent cutter 10mm x 40mm
346X1/2TC

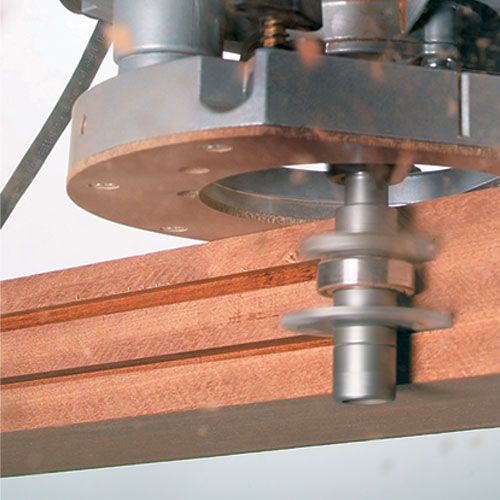

Bearing guided intumescent strip cutter for routing the groove for intumescent strip in a frame or door.
- A range of sizes available to suit 4mm thick strip from 10mm to 25mm width.
- Intumescent strip is used to create an effective barrier to both fire and smoke.
- Choose alternative bearings to suit other thicknesses of intumescent strip.
- D
- 40 mm
- C
- 10 mm
- B
- 32 mm
- E
- 4 mm
- OL
- 60 mm
- L
- 41 mm
- Shank Diameter
- 1/2 inch
- Fire check
- 30 minutes
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
33/20X1/2 | A | Slotters with M12x1.0 threaded bore enables flush recessing in the corner such as for weather proofing.
|
1 | A$41.80 |
|
34/15TC | D | These slotters have a M12 threaded boss to enable them to be threaded onto the arbor without the need for a securing nut. |
1 | A$166.14 |
|
B32 | B | Bearing for slotting systems.
|
1 | A$28.90 |
Videos
Bearing Guided Cutter Video
Our video guide on how to use your bearing guided cutters, the different types and applications.
Instructions
Safety Sheets
Product Questions

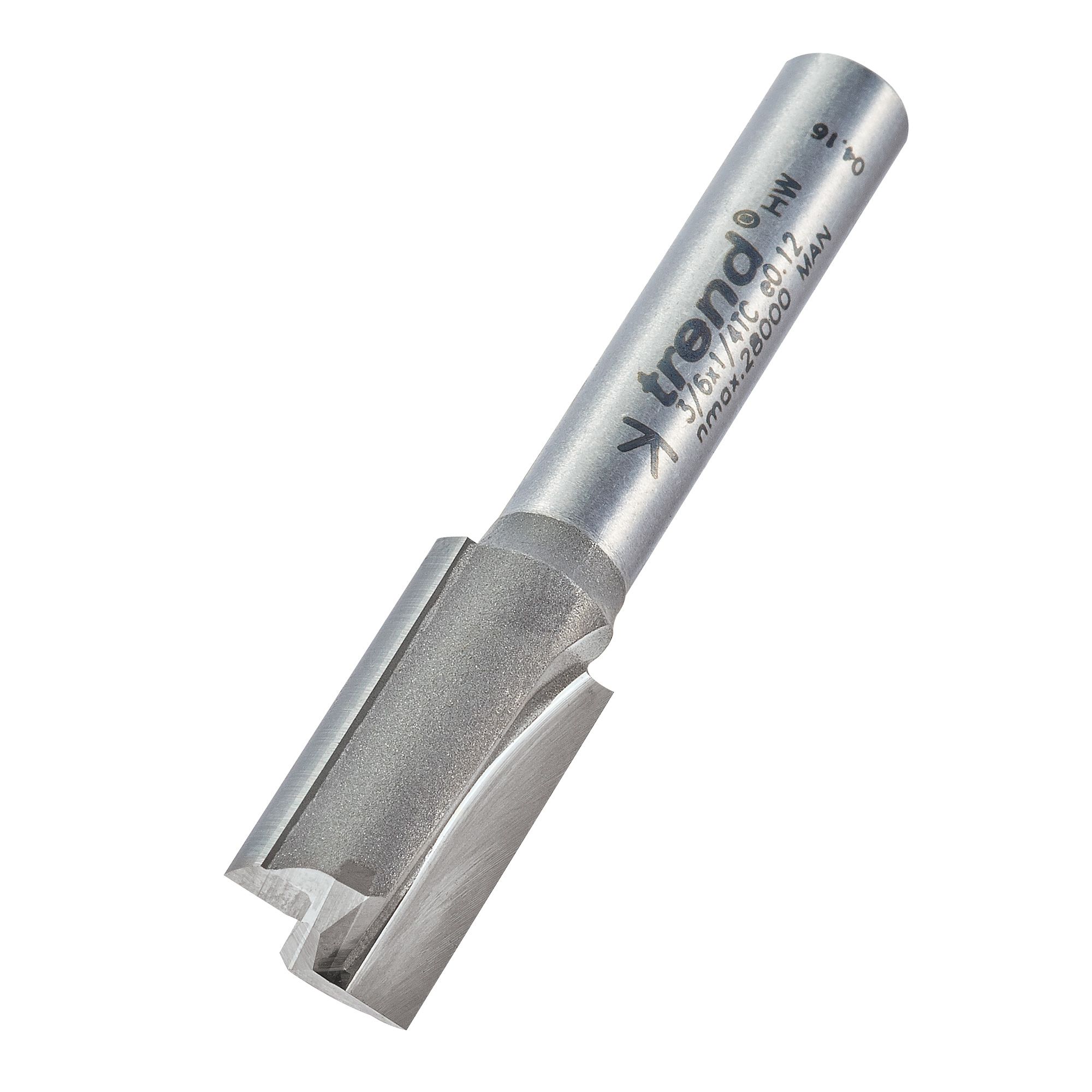

To work from the face of the door use cutter 346X1/2TC, or if you want to work on the edge of the door use cutter 3/6X1/4TC.
