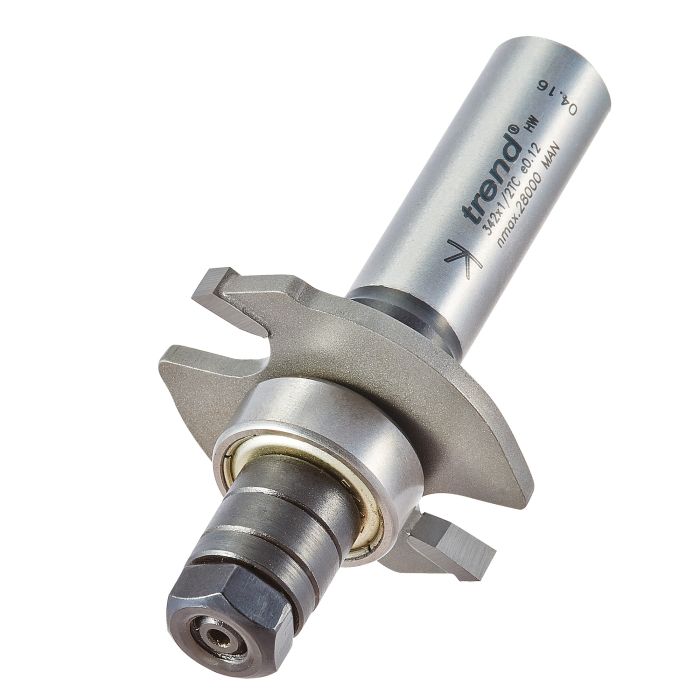

342X1/2TC - Biscuit jointer set

Name: 342X1/2TC - Biscuit jointer set
SKU: 342X1/2TC
Price: 85.38 AUD
Availability: InStock

342X1/2TC

A$170.76

Add to Wish List

Details

For biscuit jointing of timber, man-made fibre and particle board with the router.

The set includes three sizes of bearing which set the correct depth of cut for the three sizes available.
A slightly longer cut than the length of the biscuit is required to allow some lateral play for easy alignment during assembly.
A water based glue (PVA) is used with the biscuits which will expand as the moisture is absorbed.
Boards are simply clamped together until glue is cured.
For larger boards, biscuits can be doubled up by making two passes.

Spec

D: 40 mm
C: 4 mm
B: 15 mm
B2: 19 mm
B3: 23 mm
OL: 76 mm
Shank Diameter: 1/2 inch
Groove depths: 8.5 mm, 10.5 mm & 12.5 mm
For biscuit sizes: No.0, 10 & 20

Customer Review

Spares

Product Ref	Diagram No	Description	Quantity Required	Price for 1
33/60X1/2	A	Standard duty arbor with 1/4 inch spindle and spacers. Enables mounting of 1/4 inch bore slotters with and without bearings in a variety of positions. Use shims/spacers to prevent bearings with larger diameters, touching the tips of the slotters and also for accurate spacing.	1	A$44.62
ANUT/33/60	B	Replacement arbor nut for the 33/60.	1	A$7.32
B15	D	Bearings are shielded to prevent penetration of dust and grease packed for life. They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure. Scrape off any resin build-up. Always check the tightness of the fixing screw before using cutter.	1	A$31.12
B19	D	Trend Router Cutter Bearing - for 1/4in shank mounting High quality ball bearing for free running against an edge to prevent heat build up. 1/4in inside diameter for direct fit to router shanks and arbors. 3/4in outside diameter for matched fit to trimming and templating cutters. Bearings are grease packed for maximum efficiency and lifespan. Shielding to both sides of the bearing prevents penetration of dust for maximum performance.	1	A$13.52
B23	D	Bearings are shielded to prevent penetration of dust and grease packed for life. They should not be cleaned with solvent or lubricated as this will dissolve the grease and cause premature bearing failure. Scrape off any resin build-up. Always check the tightness of the fixing screw before using cutter.	1	A$28.90
SL/GG	C	All slotters are precision made in TCT grade for long life when cutting the most abrasive materials. Requires an arbor Ref. 33/60 and suitable diameter bearing to govern depth of cut.	1	A$78.10
