337X1/2TC - Tongue and groove set
337X1/2TC
A one piece bearing guided set.
- Parts are inter-changed on the arbor to alter the set-up.
- D
- 41 mm
- C
- 6.35 mm
- C2
- 10 mm
- E
- 22 mm
- OL
- 76 mm
- Shank Diameter
- 1/2 inch
- Timber thickness min.
- 15 mm
- Timber thickness max.
- 22 mm
For stationary machines at max. recommended speed 18,000 RPM
| Product Image | Product Ref | Diagram No | Description | Quantity Required | Price for 1 |
|---|---|---|---|---|---|
|
33/30X1/2 | Replacement arbor for an 8mm bore tool. |
A$25.60 | ||
|
BB22 | Bearings are shielded to prevent penetration of dust and grease packed for life.
|
A$29.02 |

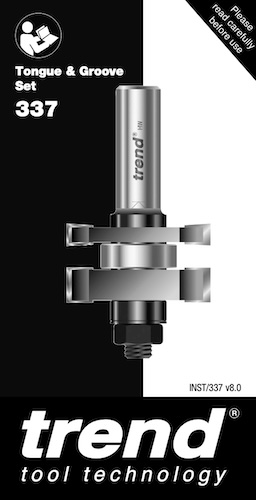

Instructions
Safety Sheets
Alternative Products
-
C158X1/2TCA$114.44 -
C158X1/4TCA$114.44
