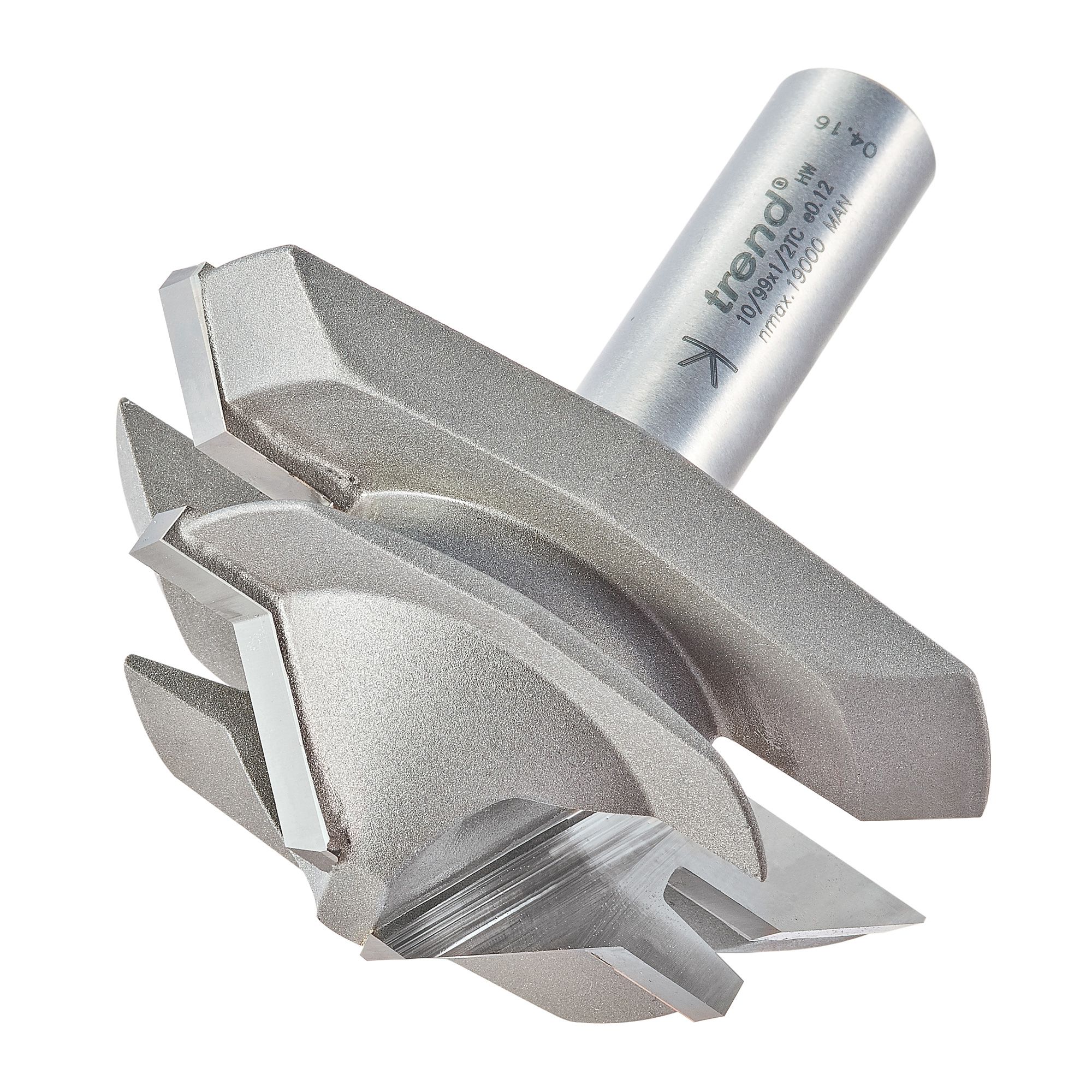

10/99X1/2TC - Mitre lock jointer
10/99X1/2TC
Machining of this joint is carried out by routing one piece with the inside face on the table.
- The matching corner inside face is machined upright against the fence.
- Make sure that the cutter is centred on the workpiece. The cutter can also be used for a glue joint, for joining lengths together.
- Ideal for speaker cabinets and drawer construction.
- Please note.
- These tools cannot be re-sharpened.
- Inverted use only.
- Use on MDF and natural timbers.
- D
- 68 mm
- C
- 30 mm
- C2
- 12.5 mm
- A
- 45 degrees
- OL
- 77.5 mm
- Shank Diameter
- 1/2 inch
- Timber thickness min.
- 15 mm
- Timber thickness max.
- 25 mm
For stationary machines at max. recommended speed 16,000 RPM
no spare products
Instructions
Safety Sheets
Product Questions
You can not re-sharpen the 10/99 because the dimensions for the tongue and groove will change making them incompatible, however, the pocket whetstones if used will help to keep a keen edge on the carbide.
